openfluid::base::PluggableFunction Class Reference

Abstract class for plugin interface. More...

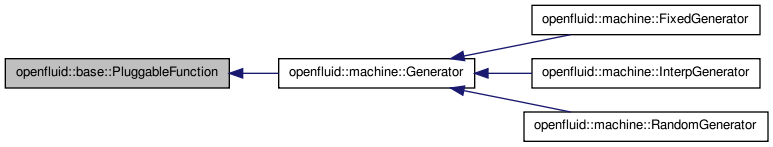

Inheritance diagram for openfluid::base::PluggableFunction:

Public Member Functions
	PluggableFunction ()
virtual	~PluggableFunction ()
void	setDataRepository (openfluid::core::CoreRepository *CoreData)
void	setExecutionMessages (openfluid::base::ExecutionMessages *ExecMsgs)
void	setFunctionEnvironment (openfluid::base::EnvironmentProperties *FuncEnv)
void	setFunctionID (const openfluid::base::FuncID_t &FuncID)
void	initLogger ()
virtual bool	initParams (openfluid::core::FuncParamsMap_t Params)=0
virtual bool	prepareData ()=0
virtual bool	checkConsistency ()=0
virtual bool	initializeRun (const SimulationInfo *SimInfo)=0
virtual bool	runStep (const SimulationStatus *SimStatus)=0
virtual bool	finalizeRun (const SimulationInfo *SimInfo)=0
Protected Member Functions
void	OPENFLUID_GetVariable (openfluid::core::Unit UnitPtr, openfluid::core::VariableName_t VarName, openfluid::core::TimeStep_t Step, openfluid::core::ScalarValue Value)
void	OPENFLUID_GetVariable (openfluid::core::Unit UnitPtr, openfluid::core::VariableName_t VarName, openfluid::core::TimeStep_t Step, openfluid::core::VectorValue Value)
void	OPENFLUID_GetInputData (openfluid::core::Unit UnitPtr, openfluid::core::InputDataName_t InputName, double Value)
void	OPENFLUID_GetInputData (openfluid::core::Unit UnitPtr, openfluid::core::InputDataName_t InputName, long Value)
void	OPENFLUID_GetInputData (openfluid::core::Unit UnitPtr, openfluid::core::InputDataName_t InputName, std::string Value)
void	OPENFLUID_SetInputData (openfluid::core::Unit *UnitPtr, const openfluid::core::InputDataName_t &InputName, const double &Value)
void	OPENFLUID_SetInputData (openfluid::core::Unit *UnitPtr, const openfluid::core::InputDataName_t &InputName, const long &Value)
void	OPENFLUID_SetInputData (openfluid::core::Unit *UnitPtr, const openfluid::core::InputDataName_t &InputName, const std::string &Value)
bool	OPENFLUID_IsInputDataExist (openfluid::core::Unit *UnitPtr, openfluid::core::InputDataName_t InputName)
bool	OPENFLUID_IsVariableExist (openfluid::core::Unit *UnitPtr, openfluid::core::VariableName_t VarName)
bool	OPENFLUID_IsScalarVariableExist (openfluid::core::Unit *UnitPtr, openfluid::core::VariableName_t VarName)
bool	OPENFLUID_IsVectorVariableExist (openfluid::core::Unit *UnitPtr, openfluid::core::VariableName_t VarName)
bool	OPENFLUID_IsVariableExist (openfluid::core::Unit *UnitPtr, openfluid::core::VariableName_t VarName, openfluid::core::TimeStep_t Step)
bool	OPENFLUID_IsScalarVariableExist (openfluid::core::Unit *UnitPtr, openfluid::core::VariableName_t VarName, openfluid::core::TimeStep_t Step)
bool	OPENFLUID_IsVectorVariableExist (openfluid::core::Unit *UnitPtr, openfluid::core::VariableName_t VarName, openfluid::core::TimeStep_t Step)
void	OPENFLUID_AppendVariable (openfluid::core::Unit *UnitPtr, openfluid::core::VariableName_t VarName, openfluid::core::ScalarValue Value)
void	OPENFLUID_AppendVariable (openfluid::core::Unit *UnitPtr, openfluid::core::VariableName_t VarName, openfluid::core::VectorValue &Value)
void	OPENFLUID_SetVariable (openfluid::core::Unit *UnitPtr, openfluid::core::VariableName_t VarName, openfluid::core::TimeStep_t Step, openfluid::core::ScalarValue Value)
void	OPENFLUID_SetVariable (openfluid::core::Unit *UnitPtr, openfluid::core::VariableName_t VarName, openfluid::core::TimeStep_t Step, openfluid::core::VectorValue Value)
bool	OPENFLUID_GetFunctionParameter (openfluid::core::FuncParamsMap_t Params, openfluid::core::FuncParamKey_t ParamName, double *Value)
bool	OPENFLUID_GetFunctionParameter (openfluid::core::FuncParamsMap_t Params, openfluid::core::FuncParamKey_t ParamName, long *Value)
bool	OPENFLUID_GetFunctionParameter (openfluid::core::FuncParamsMap_t Params, openfluid::core::FuncParamKey_t ParamName, float *Value)
bool	OPENFLUID_GetFunctionParameter (openfluid::core::FuncParamsMap_t Params, openfluid::core::FuncParamKey_t ParamName, int *Value)
bool	OPENFLUID_GetFunctionParameter (openfluid::core::FuncParamsMap_t Params, openfluid::core::FuncParamKey_t ParamName, std::string *Value)
bool	OPENFLUID_GetFunctionParameter (openfluid::core::FuncParamsMap_t Params, openfluid::core::FuncParamKey_t ParamName, std::vector< std::string > *Values)
bool	OPENFLUID_GetFunctionParameter (openfluid::core::FuncParamsMap_t Params, openfluid::core::FuncParamKey_t ParamName, std::vector< double > *Values)
bool	OPENFLUID_GetFunctionParameter (openfluid::core::FuncParamsMap_t Params, openfluid::core::FuncParamKey_t ParamName, std::vector< long > *Values)
void	OPENFLUID_GetEvents (openfluid::core::Unit UnitPtr, openfluid::core::DateTime BeginDate, openfluid::core::DateTime EndDate, openfluid::core::EventsCollection Events)
void	OPENFLUID_AppendEvent (openfluid::core::Unit *UnitPtr, openfluid::core::Event &Ev)
bool	OPENFLUID_IsUnitClassExist (openfluid::core::UnitClass_t ClassName)
bool	OPENFLUID_IsUnitExist (openfluid::core::UnitClass_t ClassName, openfluid::core::UnitID_t ID)
void	OPENFLUID_GetUnitsCount (unsigned int &UnitsCount)
bool	OPENFLUID_GetUnitsCount (const openfluid::core::UnitClass_t ClassName, unsigned int &UnitsCount)
bool	OPENFLUID_GetUnit (const openfluid::core::UnitClass_t &ClassName, const openfluid::core::UnitID_t &ID, openfluid::core::Unit *aUnit)
openfluid::core::Unit *	OPENFLUID_GetUnit (const openfluid::core::UnitClass_t &ClassName, const openfluid::core::UnitID_t &ID)
void	OPENFLUID_AddUnit (openfluid::core::UnitClass_t ClassName, openfluid::core::UnitID_t ID, openfluid::core::PcsOrd_t PcsOrder)
void	OPENFLUID_DeleteUnit (openfluid::core::UnitClass_t ClassName, openfluid::core::UnitID_t ID)
bool	OPENFLUID_AddFromToConnection (openfluid::core::UnitClass_t ClassNameFrom, openfluid::core::UnitID_t IDFrom, openfluid::core::UnitClass_t ClassNameTo, openfluid::core::UnitID_t IDTo)
bool	OPENFLUID_AddFromToConnection (openfluid::core::Unit FromUnit, openfluid::core::Unit ToUnit)
bool	OPENFLUID_RemoveFromToConnection (openfluid::core::UnitClass_t ClassNameFrom, openfluid::core::UnitID_t IDFrom, openfluid::core::UnitClass_t ClassNameTo, openfluid::core::UnitID_t IDTo)
bool	OPENFLUID_RemoveFromToConnection (openfluid::core::Unit FromUnit, openfluid::core::Unit ToUnit)
bool	OPENFLUID_AddChildParentConnection (openfluid::core::UnitClass_t ClassNameChild, openfluid::core::UnitID_t IDChild, openfluid::core::UnitClass_t ClassNameParent, openfluid::core::UnitID_t IDParent)
bool	OPENFLUID_AddChildParentConnection (openfluid::core::Unit ChildUnit, openfluid::core::Unit ParentUnit)
bool	OPENFLUID_RemoveChildParentConnection (openfluid::core::UnitClass_t ClassNameChild, openfluid::core::UnitID_t IDChild, openfluid::core::UnitClass_t ClassNameParent, openfluid::core::UnitID_t IDParent)
bool	OPENFLUID_RemoveChildParentConnection (openfluid::core::Unit ChildUnit, openfluid::core::Unit ParentUnit)
bool	OPENFLUID_IsUnitConnectedTo (openfluid::core::Unit *aUnit, const openfluid::core::UnitClass_t &ClassNameTo, const openfluid::core::UnitID_t &IDTo)
bool	OPENFLUID_IsUnitConnectedFrom (openfluid::core::Unit *aUnit, const openfluid::core::UnitClass_t &ClassNameFrom, const openfluid::core::UnitID_t &IDFrom)
bool	OPENFLUID_IsUnitChildOf (openfluid::core::Unit *aUnit, const openfluid::core::UnitClass_t &ClassNameParent, const openfluid::core::UnitID_t &IDParent)
bool	OPENFLUID_IsUnitParentOf (openfluid::core::Unit *aUnit, const openfluid::core::UnitClass_t &ClassNameChild, const openfluid::core::UnitID_t &IDChild)
void	OPENFLUID_BuildUnitsMatrix (const openfluid::core::UnitClass_t &UnitsClass, const unsigned int &ColsNbr, const unsigned int &RowsNbr)
void	OPENFLUID_ExportUnitsGraphAsDotFile (const std::string &Filename)
void	OPENFLUID_RaiseWarning (std::string Sender, openfluid::core::TimeStep_t TimeStep, std::string Msg)
void	OPENFLUID_RaiseWarning (std::string Sender, std::string Msg)
void	OPENFLUID_RaiseWarning (std::string Sender, std::string Source, openfluid::core::TimeStep_t TimeStep, std::string Msg)
void	OPENFLUID_RaiseWarning (std::string Sender, std::string Source, std::string Msg)
void	OPENFLUID_RaiseError (std::string Sender, openfluid::core::TimeStep_t TimeStep, std::string Msg)
void	OPENFLUID_RaiseError (std::string Sender, std::string Msg)
void	OPENFLUID_RaiseError (std::string Sender, std::string Source, openfluid::core::TimeStep_t TimeStep, std::string Msg)
void	OPENFLUID_RaiseError (std::string Sender, std::string Source, std::string Msg)
bool	OPENFLUID_GetRunEnvironment (std::string Key, std::string *Value)
bool	OPENFLUID_GetRunEnvironment (std::string Key, bool *Value)
Protected Attributes
openfluid::core::CoreRepository *	mp_CoreData
StdoutAndFileOutputStream	OPENFLUID_Logger

Detailed Description

Abstract class for plugin interface.

Abstract class for plugin interface, defining the minimal structure for a simulation function
All simulation functions must inherit from this class.

Author:: Jean-Christophe FABRE <fabrejc@supagro.inra.fr>

Constructor & Destructor Documentation

openfluid::base::PluggableFunction::PluggableFunction ( )

Constructor

virtual openfluid::base::PluggableFunction::~PluggableFunction ( ) [virtual]

Virtual destructor

Member Function Documentation

virtual bool openfluid::base::PluggableFunction::checkConsistency ( ) [pure virtual]

Checks the function consistency. Called by the kernel.

Implemented in openfluid::machine::FixedGenerator, openfluid::machine::InterpGenerator, and openfluid::machine::RandomGenerator.

virtual bool openfluid::base::PluggableFunction::finalizeRun ( const SimulationInfo * SimInfo ) [pure virtual]

Called by the kernel.

Implemented in openfluid::machine::FixedGenerator, openfluid::machine::InterpGenerator, and openfluid::machine::RandomGenerator.

virtual bool openfluid::base::PluggableFunction::initializeRun ( const SimulationInfo * SimInfo ) [pure virtual]

Called by the kernel.

Implemented in openfluid::machine::FixedGenerator, openfluid::machine::InterpGenerator, and openfluid::machine::RandomGenerator.

void openfluid::base::PluggableFunction::initLogger ( )

virtual bool openfluid::base::PluggableFunction::initParams ( openfluid::core::FuncParamsMap_t Params ) [pure virtual]

Initializes function parameters of the function, given as a hash map. Called by the kernel.

Implemented in openfluid::machine::Generator.

bool openfluid::base::PluggableFunction::OPENFLUID_AddChildParentConnection	(	openfluid::core::Unit *	ChildUnit,
		openfluid::core::Unit *	ParentUnit
	)			`[protected]`

Adds a child-parent connection between two units

Parameters:

`[in]`	ChildUnit	pointer to the "child" unit
`[in]`	ToUnit	pointer to the "parent" unit

Returns:: false if the connection already exists

bool openfluid::base::PluggableFunction::OPENFLUID_AddChildParentConnection	(	openfluid::core::UnitClass_t	ClassNameChild,
		openfluid::core::UnitID_t	IDChild,
		openfluid::core::UnitClass_t	ClassNameParent,
		openfluid::core::UnitID_t	IDParent
	)			`[protected]`

Adds a child-parent connection between two units

Parameters:

`[in]`	ClassNameFrom	class name of the "child" unit
`[in]`	IDFrom	ID of the "child" unit
`[in]`	ClassNameFrom	class name of the "parent" unit
`[in]`	IDFrom	ID of the "parent" unit

Returns:: false if the connection already exists

bool openfluid::base::PluggableFunction::OPENFLUID_AddFromToConnection	(	openfluid::core::Unit *	FromUnit,
		openfluid::core::Unit *	ToUnit
	)			`[protected]`

Adds a from-to connection between two units

Parameters:

`[in]`	FromUnit	pointer to the "from" unit
`[in]`	ToUnit	pointer to the "to" unit

Returns:: false if the connection already exists

bool openfluid::base::PluggableFunction::OPENFLUID_AddFromToConnection	(	openfluid::core::UnitClass_t	ClassNameFrom,
		openfluid::core::UnitID_t	IDFrom,
		openfluid::core::UnitClass_t	ClassNameTo,
		openfluid::core::UnitID_t	IDTo
	)			`[protected]`

Adds a from-to connection between two units

Parameters:

`[in]`	ClassNameFrom	class name of the "from" unit
`[in]`	IDFrom	ID of the "from" unit
`[in]`	ClassNameFrom	class name of the "to" unit
`[in]`	IDFrom	ID of the "to" unit

Returns:: false if the unit connection already exists

void openfluid::base::PluggableFunction::OPENFLUID_AddUnit	(	openfluid::core::UnitClass_t	ClassName,
		openfluid::core::UnitID_t	ID,
		openfluid::core::PcsOrd_t	PcsOrder
	)			`[protected]`

Adds a unit to the set of units if not already exists

Parameters:

`[in]`	ClassName	class name of the added unit
`[in]`	ID	ID of the added unit

void openfluid::base::PluggableFunction::OPENFLUID_AppendEvent	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::Event &	Ev
	)			`[protected]`

Appends an event on a unit

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	Ev	the event to append

void openfluid::base::PluggableFunction::OPENFLUID_AppendVariable	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::VariableName_t	VarName,
		openfluid::core::VectorValue &	Value
	)			`[protected]`

Appends a distributed vector variable value for a unit at the end of the previously added values for this variable

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	VarName	the name of the variable
`[in]`	Value	the added value of the variable

void openfluid::base::PluggableFunction::OPENFLUID_AppendVariable	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::VariableName_t	VarName,
		openfluid::core::ScalarValue	Value
	)			`[protected]`

Appends a distributed scalar variable value for a unit at the end of the previously added values for this variable

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	VarName	the name of the variable
`[in]`	Value	the added value of the variable

void openfluid::base::PluggableFunction::OPENFLUID_BuildUnitsMatrix	(	const openfluid::core::UnitClass_t &	UnitsClass,
		const unsigned int &	ColsNbr,
		const unsigned int &	RowsNbr
	)			`[protected]`

Builds a ColsNbr x RowsNbr unix matrix with bi-directionnal connections

Parameters:

`[in]`	UnitsClass	the name of units class
`[in]`	ColsNbr	the number of units on the X axis
`[in]`	RowsNbr	the number of units on the Y axis

void openfluid::base::PluggableFunction::OPENFLUID_DeleteUnit	(	openfluid::core::UnitClass_t	ClassName,
		openfluid::core::UnitID_t	ID
	)			`[protected]`

Deletes a unit from the set of units if exists

Parameters:

`[in]`	ClassName	class name of the removed unit
`[in]`	ID	ID of the added unit

Returns:: true if the unit has been correctly deleted

void openfluid::base::PluggableFunction::OPENFLUID_ExportUnitsGraphAsDotFile ( const std::string & Filename ) [protected]

Exports the graph of the landscape representation as a graphviz dot file. The file is saved in the output directory of the simulation.

Parameters:

[in] Filename the name of the export file

void openfluid::base::PluggableFunction::OPENFLUID_GetEvents	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::DateTime	BeginDate,
		openfluid::core::DateTime	EndDate,
		openfluid::core::EventsCollection *	Events
	)			`[protected]`

Gets discrete events happening on a unit during a time period

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	BeginDate	the beginning of the time period
`[in]`	EndDate	the ending of the time period
`[out]`	Events	the collection of event corresponding to the request

bool openfluid::base::PluggableFunction::OPENFLUID_GetFunctionParameter	(	openfluid::core::FuncParamsMap_t	Params,
		openfluid::core::FuncParamKey_t	ParamName,
		std::vector< long > *	Values
	)			`[protected]`

Gets a function parameter vector of values from the parameters set, as a vector of long ints

Parameters:

`[in]`	Params	the parameters set for the simulation function
`[in]`	ParamName	the name of the requested parameter
`[out]`	Values	the vector of values of the requested parameter

bool openfluid::base::PluggableFunction::OPENFLUID_GetFunctionParameter	(	openfluid::core::FuncParamsMap_t	Params,
		openfluid::core::FuncParamKey_t	ParamName,
		std::vector< double > *	Values
	)			`[protected]`

Gets a function parameter vector of values from the parameters set, as a vector of doubles

Parameters:

`[in]`	Params	the parameters set for the simulation function
`[in]`	ParamName	the name of the requested parameter
`[out]`	Values	the vector of values of the requested parameter

bool openfluid::base::PluggableFunction::OPENFLUID_GetFunctionParameter	(	openfluid::core::FuncParamsMap_t	Params,
		openfluid::core::FuncParamKey_t	ParamName,
		std::vector< std::string > *	Values
	)			`[protected]`

Gets a function parameter vector of values from the parameters set, as a vector of strings

Parameters:

`[in]`	Params	the parameters set for the simulation function
`[in]`	ParamName	the name of the requested parameter
`[out]`	Values	the vector of values of the requested parameter

bool openfluid::base::PluggableFunction::OPENFLUID_GetFunctionParameter	(	openfluid::core::FuncParamsMap_t	Params,
		openfluid::core::FuncParamKey_t	ParamName,
		std::string *	Value
	)			`[protected]`

Gets a function parameter value from the parameters set, as a string

Parameters:

`[in]`	Params	the parameters set for the simulation function
`[in]`	ParamName	the name of the requested parameter
`[out]`	Value	the value of the requested parameter

bool openfluid::base::PluggableFunction::OPENFLUID_GetFunctionParameter	(	openfluid::core::FuncParamsMap_t	Params,
		openfluid::core::FuncParamKey_t	ParamName,
		int *	Value
	)			`[protected]`

Gets a function parameter value from the parameters set, as an int

Parameters:

`[in]`	Params	the parameters set for the simulation function
`[in]`	ParamName	the name of the requested parameter
`[out]`	Value	the value of the requested parameter

bool openfluid::base::PluggableFunction::OPENFLUID_GetFunctionParameter	(	openfluid::core::FuncParamsMap_t	Params,
		openfluid::core::FuncParamKey_t	ParamName,
		float *	Value
	)			`[protected]`

Gets a function parameter from the parameters set, as a float

Parameters:

`[in]`	Params	the parameters set for the simulation function
`[in]`	ParamName	the name of the requested parameter
`[out]`	Value	the value of the requested parameter

bool openfluid::base::PluggableFunction::OPENFLUID_GetFunctionParameter	(	openfluid::core::FuncParamsMap_t	Params,
		openfluid::core::FuncParamKey_t	ParamName,
		long *	Value
	)			`[protected]`

Gets a function parameter value from the parameters set, as a long int

Parameters:

`[in]`	Params	the parameters set for the simulation function
`[in]`	ParamName	the name of the requested parameter
`[out]`	Value	the value of the requested parameter

bool openfluid::base::PluggableFunction::OPENFLUID_GetFunctionParameter	(	openfluid::core::FuncParamsMap_t	Params,
		openfluid::core::FuncParamKey_t	ParamName,
		double *	Value
	)			`[protected]`

Gets a function parameter from the parameters set, as a double

Parameters:

`[in]`	Params	the parameters set for the simulation function
`[in]`	ParamName	the name of the requested parameter
`[out]`	Value	the value of the requested parameter

void openfluid::base::PluggableFunction::OPENFLUID_GetInputData	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::InputDataName_t	InputName,
		std::string *	Value
	)			`[protected]`

Gets input data for a unit, as a string

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	InputName	the name of the requested property
`[out]`	Value	the value of the requested property

void openfluid::base::PluggableFunction::OPENFLUID_GetInputData	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::InputDataName_t	InputName,
		long *	Value
	)			`[protected]`

Gets input data for a unit, as a long integer

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	InputName	the name of the requested property
`[out]`	Value	the value of the requested property

void openfluid::base::PluggableFunction::OPENFLUID_GetInputData	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::InputDataName_t	InputName,
		double *	Value
	)			`[protected]`

Gets input data for a unit, as a double

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	InputName	the name of the requested property
`[out]`	Value	the value of the requested property

bool openfluid::base::PluggableFunction::OPENFLUID_GetRunEnvironment	(	std::string	Key,
		bool *	Value
	)			`[protected]`

Gets an environment boolean value associated to a Key

Parameters:

`[in]`	Key	the sender of the message
`[out]`	Value	the value associated with the environment key

bool openfluid::base::PluggableFunction::OPENFLUID_GetRunEnvironment	(	std::string	Key,
		std::string *	Value
	)			`[protected]`

Gets an environment string value associated to a Key

Parameters:

`[in]`	Key	the sender of the message
`[out]`	Value	the value associated with the environment key

openfluid::core::Unit* openfluid::base::PluggableFunction::OPENFLUID_GetUnit	(	const openfluid::core::UnitClass_t &	ClassName,
		const openfluid::core::UnitID_t &	ID
	)			`[protected]`

bool openfluid::base::PluggableFunction::OPENFLUID_GetUnit	(	const openfluid::core::UnitClass_t &	ClassName,
		const openfluid::core::UnitID_t &	ID,
		openfluid::core::Unit *	aUnit
	)			`[protected]`

Returns a pointer to the queried unit if exists

Parameters:

`[in]`	ClassName	the queried class name
`[in]`	ID	the queried unit ID
`[out]`	UnitPtr	a pointer to the requested Unit, NULL if the unit does not exist

Returns:: false if the unit does not exist

bool openfluid::base::PluggableFunction::OPENFLUID_GetUnitsCount	(	const openfluid::core::UnitClass_t	ClassName,
		unsigned int &	UnitsCount
	)			`[protected]`

Returns the number of units of the class if the queried unit class exists

Parameters:

`[in]`	ClassName	the queried class name
`[out]`	UnitsCount	the queried class name

Returns:: false if the unit class does not exist

void openfluid::base::PluggableFunction::OPENFLUID_GetUnitsCount ( unsigned int & UnitsCount ) [protected]

Returns the total number of units

Parameters:

[out] UnitsCount the queried class name

void openfluid::base::PluggableFunction::OPENFLUID_GetVariable	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::VariableName_t	VarName,
		openfluid::core::TimeStep_t	Step,
		openfluid::core::VectorValue *	Value
	)			`[protected]`

Gets the distributed variable value for a unit at a time step

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	VarName	the name of the requested variable
`[in]`	Step	the time step for the value of the requested variable
`[out]`	Value	the value of the requested variable (vector)

void openfluid::base::PluggableFunction::OPENFLUID_GetVariable	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::VariableName_t	VarName,
		openfluid::core::TimeStep_t	Step,
		openfluid::core::ScalarValue *	Value
	)			`[protected]`

Gets the distributed variable value for a unit at a time step

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	VarName	the name of the requested variable
`[in]`	Step	the time step for the value of the requested variable
`[out]`	Value	the value of the requested variable (scalar)

bool openfluid::base::PluggableFunction::OPENFLUID_IsInputDataExist	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::InputDataName_t	InputName
	)			`[protected]`

Returns true if a distributed input data exists, false otherwise

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	InputName	the name of the queried variable

bool openfluid::base::PluggableFunction::OPENFLUID_IsScalarVariableExist	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::VariableName_t	VarName,
		openfluid::core::TimeStep_t	Step
	)			`[protected]`

Returns true if a distributed scalar variable exists and if a value has been set for the given step, false otherwise

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	VarName	the name of the requested variable
`[in]`	Step	the time step for the value of the variable

bool openfluid::base::PluggableFunction::OPENFLUID_IsScalarVariableExist	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::VariableName_t	VarName
	)			`[protected]`

Returns true if a distributed scalar variable exists, false otherwise

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	VarName	the name of the requested variable

bool openfluid::base::PluggableFunction::OPENFLUID_IsUnitChildOf	(	openfluid::core::Unit *	aUnit,
		const openfluid::core::UnitClass_t &	ClassNameParent,
		const openfluid::core::UnitID_t &	IDParent
	)			`[protected]`

Returns true if a given unit is "a child of" another unit

Parameters:

`[in]`	aUnit	the given unit
`[in]`	ClassNameParent	the class name of the other unit to test
`[in]`	IDParent	the ID of the other unit to test

Returns:: true if the given unit is "a child of" the other unit

bool openfluid::base::PluggableFunction::OPENFLUID_IsUnitClassExist ( openfluid::core::UnitClass_t ClassName ) [protected]

Returns true if the queried unit class exists

Parameters:

[in] ClassName the queried class name

bool openfluid::base::PluggableFunction::OPENFLUID_IsUnitConnectedFrom	(	openfluid::core::Unit *	aUnit,
		const openfluid::core::UnitClass_t &	ClassNameFrom,
		const openfluid::core::UnitID_t &	IDFrom
	)			`[protected]`

Returns true if a given unit is connected "from" another unit

Parameters:

`[in]`	aUnit	the given unit
`[in]`	ClassNameFrom	the class name of the other unit to test
`[in]`	IDFrom	the ID of the other unit to test

Returns:: true if the given unit is connected "from" the other unit

bool openfluid::base::PluggableFunction::OPENFLUID_IsUnitConnectedTo	(	openfluid::core::Unit *	aUnit,
		const openfluid::core::UnitClass_t &	ClassNameTo,
		const openfluid::core::UnitID_t &	IDTo
	)			`[protected]`

Returns true if a given unit is connected "to" another unit

Parameters:

`[in]`	aUnit	the given unit
`[in]`	ClassNameTo	the class name of the other unit to test
`[in]`	IDTo	the ID of the other unit to test

Returns:: true if the given unit is connected "to" the other unit

bool openfluid::base::PluggableFunction::OPENFLUID_IsUnitExist	(	openfluid::core::UnitClass_t	ClassName,
		openfluid::core::UnitID_t	ID
	)			`[protected]`

Returns true if the queried unit exists

Parameters:

`[in]`	ClassName	the class of the queried unit
`[in]`	ID	the ID of the queried unit

bool openfluid::base::PluggableFunction::OPENFLUID_IsUnitParentOf	(	openfluid::core::Unit *	aUnit,
		const openfluid::core::UnitClass_t &	ClassNameChild,
		const openfluid::core::UnitID_t &	IDChild
	)			`[protected]`

Returns true if a given unit is "parent of" another unit

Parameters:

`[in]`	aUnit	the given unit
`[in]`	ClassNameChild	the class name of the other unit to test
`[in]`	IDChild	the ID of the other unit to test

Returns:: true if the given unit is "parent of" the other unit

bool openfluid::base::PluggableFunction::OPENFLUID_IsVariableExist	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::VariableName_t	VarName,
		openfluid::core::TimeStep_t	Step
	)			`[protected]`

Returns true if a distributed variable exists and if a value has been set for the given step, false otherwise (searches both scalar and vector variables)

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	VarName	the name of the requested variable
`[in]`	Step	the time step for the value of the variable

bool openfluid::base::PluggableFunction::OPENFLUID_IsVariableExist	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::VariableName_t	VarName
	)			`[protected]`

Returns true if a distributed variable exists, false otherwise (searches both scalar and vector variables)

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	VarName	the name of the requested variable

bool openfluid::base::PluggableFunction::OPENFLUID_IsVectorVariableExist	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::VariableName_t	VarName,
		openfluid::core::TimeStep_t	Step
	)			`[protected]`

Returns true if a distributed vector variable exists and if a value has been set for the given step, false otherwise

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	VarName	the name of the requested variable
`[in]`	Step	the time step for the value of the variable

bool openfluid::base::PluggableFunction::OPENFLUID_IsVectorVariableExist	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::VariableName_t	VarName
	)			`[protected]`

Returns true if a distributed vector variable exists, false otherwise

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	VarName	the name of the requested variable

void openfluid::base::PluggableFunction::OPENFLUID_RaiseError	(	std::string	Sender,
		std::string	Source,
		std::string	Msg
	)			`[protected]`

Raises an error message to the kernel. This stops the simulation the next time the kernel has the control

Parameters:

`[in]`	Sender	the sender of the message
`[in]`	Source	of the message (location in the sender)
`[in]`	Msg	the content of the message

void openfluid::base::PluggableFunction::OPENFLUID_RaiseError	(	std::string	Sender,
		std::string	Source,
		openfluid::core::TimeStep_t	TimeStep,
		std::string	Msg
	)			`[protected]`

Raises a time-marked error message to the kernel. This stops the simulation the next time the kernel has the control

Parameters:

`[in]`	Sender	the sender of the message
`[in]`	Source	of the message (location in the sender)
`[in]`	TimeStep	the time step number when the message occurred
`[in]`	Msg	the content of the message

void openfluid::base::PluggableFunction::OPENFLUID_RaiseError	(	std::string	Sender,
		std::string	Msg
	)			`[protected]`

Raises an error message to the kernel. This stops the simulation the next time the kernel has the control

Parameters:

`[in]`	Sender	the sender of the message
`[in]`	Msg	the content of the message

void openfluid::base::PluggableFunction::OPENFLUID_RaiseError	(	std::string	Sender,
		openfluid::core::TimeStep_t	TimeStep,
		std::string	Msg
	)			`[protected]`

Raises a time-marked error message to the kernel. This stops the simulation the next time the kernel has the control

Parameters:

`[in]`	Sender	the sender of the message
`[in]`	TimeStep	the time step number when the message occurred
`[in]`	Msg	the content of the message

void openfluid::base::PluggableFunction::OPENFLUID_RaiseWarning	(	std::string	Sender,
		std::string	Source,
		std::string	Msg
	)			`[protected]`

Raises a warning message to the kernel. This do not stops the simulation

Parameters:

`[in]`	Sender	the sender of the message
`[in]`	Source	the source of the message
`[in]`	Msg	the content of the message

void openfluid::base::PluggableFunction::OPENFLUID_RaiseWarning	(	std::string	Sender,
		std::string	Source,
		openfluid::core::TimeStep_t	TimeStep,
		std::string	Msg
	)			`[protected]`

Raises a time-marked warning message to the kernel. This do not stops the simulation

Parameters:

`[in]`	Sender	the sender of the message
`[in]`	Source	the source of the message
`[in]`	TimeStep	the time step number when the message occurred
`[in]`	Msg	the content of the message

void openfluid::base::PluggableFunction::OPENFLUID_RaiseWarning	(	std::string	Sender,
		std::string	Msg
	)			`[protected]`

Raises a warning message to the kernel. This do not stops the simulation

Parameters:

`[in]`	Sender	the sender of the message
`[in]`	Msg	the content of the message

void openfluid::base::PluggableFunction::OPENFLUID_RaiseWarning	(	std::string	Sender,
		openfluid::core::TimeStep_t	TimeStep,
		std::string	Msg
	)			`[protected]`

Raises a time-marked warning message to the kernel. This do not stops the simulation

Parameters:

`[in]`	Sender	the sender of the message
`[in]`	TimeStep	the time step number when the message occurred
`[in]`	Msg	the content of the message

bool openfluid::base::PluggableFunction::OPENFLUID_RemoveChildParentConnection	(	openfluid::core::Unit *	ChildUnit,
		openfluid::core::Unit *	ParentUnit
	)			`[protected]`

Removes a child-parent connection between two units

Parameters:

`[in]`	ChildUnit	pointer to the "child" unit
`[in]`	ToUnit	pointer to the "parent" unit

Returns:: false if the connection does not exist

bool openfluid::base::PluggableFunction::OPENFLUID_RemoveChildParentConnection	(	openfluid::core::UnitClass_t	ClassNameChild,
		openfluid::core::UnitID_t	IDChild,
		openfluid::core::UnitClass_t	ClassNameParent,
		openfluid::core::UnitID_t	IDParent
	)			`[protected]`

Removes a child-parent connection between two units

Parameters:

`[in]`	ClassNameFrom	class name of the "child" unit
`[in]`	IDFrom	ID of the "child" unit
`[in]`	ClassNameFrom	class name of the "parent" unit
`[in]`	IDFrom	ID of the "parent" unit

Returns:: false if the connection does not exist

bool openfluid::base::PluggableFunction::OPENFLUID_RemoveFromToConnection	(	openfluid::core::Unit *	FromUnit,
		openfluid::core::Unit *	ToUnit
	)			`[protected]`

Removes a from-to connection between two units

Parameters:

`[in]`	FromUnit	pointer to the "from" unit
`[in]`	ToUnit	pointer to the "to" unit

Returns:: false if the connection does not exist

bool openfluid::base::PluggableFunction::OPENFLUID_RemoveFromToConnection	(	openfluid::core::UnitClass_t	ClassNameFrom,
		openfluid::core::UnitID_t	IDFrom,
		openfluid::core::UnitClass_t	ClassNameTo,
		openfluid::core::UnitID_t	IDTo
	)			`[protected]`

Removes a from-to connection between two units

Parameters:

`[in]`	ClassNameFrom	class name of the "from" unit
`[in]`	IDFrom	ID of the "from" unit
`[in]`	ClassNameFrom	class name of the "to" unit
`[in]`	IDFrom	ID of the "to" unit

Returns:: false if the unit connection does not exist

void openfluid::base::PluggableFunction::OPENFLUID_SetInputData	(	openfluid::core::Unit *	UnitPtr,
		const openfluid::core::InputDataName_t &	InputName,
		const std::string &	Value
	)			`[protected]`

Sets input data for a unit, as a string

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	InputName	the name of the set property
`[out]`	Value	the value of the set property

void openfluid::base::PluggableFunction::OPENFLUID_SetInputData	(	openfluid::core::Unit *	UnitPtr,
		const openfluid::core::InputDataName_t &	InputName,
		const long &	Value
	)			`[protected]`

Sets input data for a unit, as a long integer

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	InputName	the name of the set property
`[in]`	Value	the value of the set property

void openfluid::base::PluggableFunction::OPENFLUID_SetInputData	(	openfluid::core::Unit *	UnitPtr,
		const openfluid::core::InputDataName_t &	InputName,
		const double &	Value
	)			`[protected]`

Sets input data for a unit, as a double

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	InputName	the name of the set property
`[in]`	Value	the value of the set property

void openfluid::base::PluggableFunction::OPENFLUID_SetVariable	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::VariableName_t	VarName,
		openfluid::core::TimeStep_t	Step,
		openfluid::core::VectorValue	Value
	)			`[protected]`

Sets a distributed vector variable value for a unit at a time step

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	VarName	the name of the variable
`[in]`	Step	the time step for the value of the variable
`[in]`	Value	the added value of the variable

void openfluid::base::PluggableFunction::OPENFLUID_SetVariable	(	openfluid::core::Unit *	UnitPtr,
		openfluid::core::VariableName_t	VarName,
		openfluid::core::TimeStep_t	Step,
		openfluid::core::ScalarValue	Value
	)			`[protected]`

Sets a distributed scalar variable value for a unit at a time step

Parameters:

`[in]`	UnitPtr	a Unit
`[in]`	VarName	the name of the variable
`[in]`	Step	the time step for the value of the variable
`[in]`	Value	the added value of the variable

virtual bool openfluid::base::PluggableFunction::prepareData ( ) [pure virtual]

Prepares data. Called by the kernel.

Implemented in openfluid::machine::Generator.

virtual bool openfluid::base::PluggableFunction::runStep ( const SimulationStatus * SimStatus ) [pure virtual]

Called by the kernel.

Implemented in openfluid::machine::FixedGenerator, openfluid::machine::InterpGenerator, and openfluid::machine::RandomGenerator.

void openfluid::base::PluggableFunction::setDataRepository ( openfluid::core::CoreRepository * CoreData ) [inline]

void openfluid::base::PluggableFunction::setExecutionMessages ( openfluid::base::ExecutionMessages * ExecMsgs ) [inline]

void openfluid::base::PluggableFunction::setFunctionEnvironment ( openfluid::base::EnvironmentProperties * FuncEnv ) [inline]

void openfluid::base::PluggableFunction::setFunctionID ( const openfluid::base::FuncID_t & FuncID ) [inline]

Member Data Documentation

openfluid::core::CoreRepository* openfluid::base::PluggableFunction::mp_CoreData [protected]

Pointer to the core repository (const). It should be used with care. Prefer to use the OPENFLUID_Xxxx methods.

StdoutAndFileOutputStream openfluid::base::PluggableFunction::OPENFLUID_Logger [protected]

openfluid::base::PluggableFunction Class Reference

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
