openfluid::core::VectorValue Class Reference

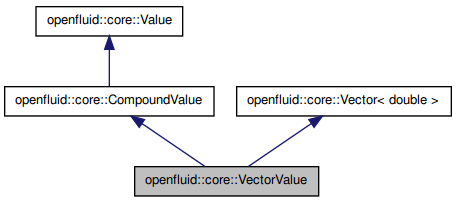

Inheritance diagram for openfluid::core::VectorValue:

List of all members.

Public Member Functions
	VectorValue ()
	VectorValue (const VectorValue &Val)
	VectorValue (unsigned long Size)
	VectorValue (unsigned long Size, double InitValue)
	VectorValue (double *Data, unsigned long Size)
Value &	operator= (const Value &Other)
virtual	~VectorValue ()
Type	getType () const
Value *	clone () const
void	writeToStream (std::ostream &OutStm) const

---

Detailed Description

VectorValue is a container for a 1D vector of signed double precision floating point values.

See also:

Value

Vector

Example : declaration

  // declaration of a VectorValue, empty by default
  openfluid::core::VectorValue Val1;

  // declaration of a VectorValue of 7 elements, with values initialized to 0.0
  openfluid::core::VectorValue Val2(7);

  // declaration of a VectorValue of 7 elements, with values initialized to 1.99
  openfluid::core::VectorValue Val3(7,1.99);

Example : getting the contained values

  double Tmp1;

  // using the get method
  Tmp1 = Val1.get(2);

  // or using the [] operator
  Tmp1 = Val1[2];

Example : getting all values as a c-style array of double

  double DblArrayVal[];

  DblArrayVal = Val1.getData();

Example : setting the contained values

  // using the set method
  Val1.set(0,101.99);

  // or using the [] operator
  Val1[0] = 101.99;

Example : conversion from string

  openfluid::core::StringValue StringVal;
  openfluid::core::VectorValue Val2;

  // to VectorValue, using a string values separator
  StringVal.set("3;5;2.8;6;17.999923;1;1;1;1;1;2.11;2.12;2.13;2.14;2.15");
  StringVal.toVectorValue(";",Val2);

Example : conversion to string

  std::string StdStrVal = Val1.toString();

---

Constructor & Destructor Documentation

openfluid::core::VectorValue::VectorValue

(

)

[inline]

Default constructor

openfluid::core::VectorValue::VectorValue

(

const VectorValue &

Val

)

[inline]

Copy constructor

openfluid::core::VectorValue::VectorValue

(

unsigned long

Size

)

[inline]

Constructor, creates a vector containing Size elements

openfluid::core::VectorValue::VectorValue	(	unsigned long	Size,
		double	InitValue
	)		[inline]

Constructor, creates a vector containing Size elements, initialized with value InitValue

openfluid::core::VectorValue::VectorValue	(	double *	Data,
		unsigned long	Size
	)		[inline]

Constructor, creates a vector of size Size, containing Data

virtual openfluid::core::VectorValue::~VectorValue

(

)

[inline, virtual]

---

Member Function Documentation

Value* openfluid::core::VectorValue::clone

(

)

const [inline, virtual]

Reimplemented from openfluid::core::Value.

Type openfluid::core::VectorValue::getType

(

)

const [inline, virtual]

Implements openfluid::core::Value.

Value& openfluid::core::VectorValue::operator=

(

const Value &

)

[virtual]

Assignment operator

Reimplemented from openfluid::core::Value.

void openfluid::core::VectorValue::writeToStream

(

std::ostream &

OutStm

)

const [virtual]

Implements openfluid::core::Value.
