openfluid::ware::PluggableWare Class Reference

#include <ware/PluggableWare.hpp>

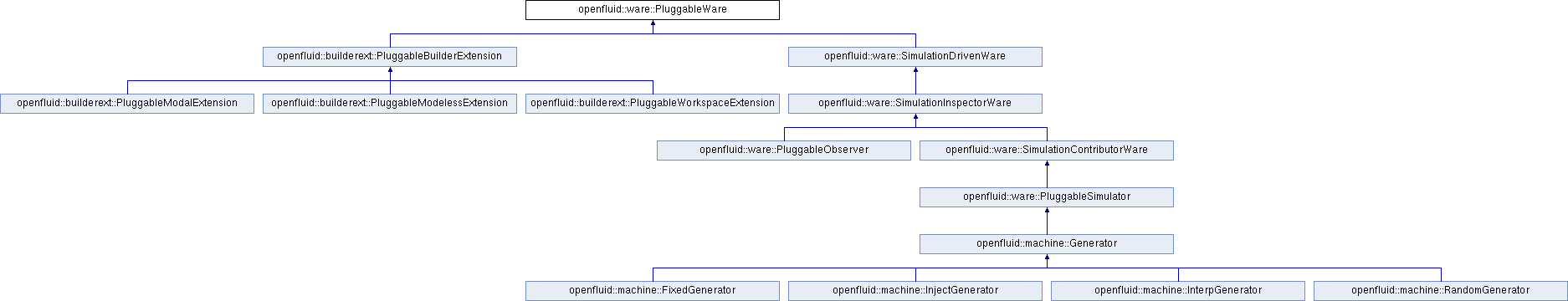

Inheritance diagram for openfluid::ware::PluggableWare:

List of all members.

Public Types
enum	WareType { UNDEFINED, OBSERVER, SIMULATOR, OTHER }
Public Member Functions
virtual	~PluggableWare ()
void	linkToRunEnvironment (const openfluid::base::EnvironmentProperties *Env)
virtual void	initializeWare (const WareID_t &ID)
virtual void	finalizeWare ()
Static Public Member Functions
static bool	isWellFormated (const openfluid::ware::WareParamKey_t &ParameterKey)
static boost::property_tree::ptree	getParamsAsPropertyTree (const WareParams_t &Params)
Protected Member Functions
virtual bool	isLinked () const
virtual void	OPENFLUID_RaiseError (const std::string &Msg)
bool	OPENFLUID_GetRunEnvironment (std::string Key, std::string &Val)
bool	OPENFLUID_GetRunEnvironment (std::string Key, bool &Val)
WareID_t	OPENFLUID_GetWareID () const
	PluggableWare (WareType WType)
Protected Attributes
bool	m_Initialized
WareType	m_WareType

---

Member Enumeration Documentation

enum openfluid::ware::PluggableWare::WareType

Enumerator:

UNDEFINED
OBSERVER
SIMULATOR
OTHER

---

Constructor & Destructor Documentation

openfluid::ware::PluggableWare::PluggableWare

(

WareType

WType

)

[protected]

virtual openfluid::ware::PluggableWare::~PluggableWare

(

)

[virtual]

---

Member Function Documentation

virtual void openfluid::ware::PluggableWare::finalizeWare

(

)

[virtual]

Reimplemented in openfluid::ware::SimulationDrivenWare.

static boost::property_tree::ptree openfluid::ware::PluggableWare::getParamsAsPropertyTree

(

const WareParams_t &

Params

)

[static]

virtual void openfluid::ware::PluggableWare::initializeWare

(

const WareID_t &

ID

)

[virtual]

Reimplemented in openfluid::ware::SimulationDrivenWare, openfluid::builderext::PluggableBuilderExtension, and openfluid::ware::PluggableObserver.

virtual bool openfluid::ware::PluggableWare::isLinked

(

)

const [inline, protected, virtual]

Reimplemented in openfluid::ware::SimulationDrivenWare, and openfluid::ware::SimulationInspectorWare.

static bool openfluid::ware::PluggableWare::isWellFormated

(

const openfluid::ware::WareParamKey_t &

ParameterKey

)

[static]

Return false if ParameterKey starts nor ends with a dot, true otherwise

void openfluid::ware::PluggableWare::linkToRunEnvironment

(

const openfluid::base::EnvironmentProperties *

Env

)

[inline]

bool openfluid::ware::PluggableWare::OPENFLUID_GetRunEnvironment	(	std::string	Key,
		std::string &	Val
	)		[protected]

Gets an environment string value associated to a Key

Parameters:

[in]	Key	the sender of the message
[out]	Val	the value associated with the environment key

bool openfluid::ware::PluggableWare::OPENFLUID_GetRunEnvironment	(	std::string	Key,
		bool &	Val
	)		[protected]

Gets an environment boolean value associated to a Key

Parameters:

[in]	Key	the sender of the message
[out]	Val	the value associated with the environment key

WareID_t openfluid::ware::PluggableWare::OPENFLUID_GetWareID

(

)

const [inline, protected]

Returns the ID of the ware (itself)

Returns:

the ID

virtual void openfluid::ware::PluggableWare::OPENFLUID_RaiseError

(

const std::string &

Msg

)

[protected, virtual]

Raises an error message to the kernel. This stops the simulation the next time the kernel has the control

Parameters:

[in]

Msg

the content of the message

Reimplemented in openfluid::ware::SimulationDrivenWare.

---

Member Data Documentation

bool openfluid::ware::PluggableWare::m_Initialized [protected]

WareType openfluid::ware::PluggableWare::m_WareType [protected]

---

The documentation for this class was generated from the following file:

• ware/PluggableWare.hpp
