openfluid::core::GeoValue Class Reference

Abstract class for geospatial data. More...

#include <core/GeoValue.hpp>

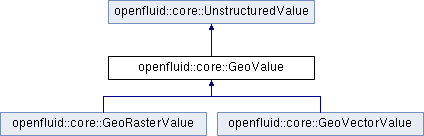

Inheritance diagram for openfluid::core::GeoValue:

Public Member Functions
	GeoValue (std::string FilePath, std::string FileName)
virtual	~GeoValue ()=0
std::string	getFilePath ()
Public Member Functions inherited from openfluid::core::UnstructuredValue
	UnstructuredValue ()
virtual	~UnstructuredValue ()
virtual UnstructuredType	getType () const =0

Static Public Member Functions
static std::string	computeAbsolutePath (std::string FilePath, std::string FileName)
Static Public Member Functions inherited from openfluid::core::UnstructuredValue
static bool	getValueTypeFromString (const std::string ValueTypeString, UnstructuredValue::UnstructuredType &ValueType)
static std::string	getStringFromValueType (const UnstructuredValue::UnstructuredType ValueType)

Protected Member Functions
virtual void	tryToOpenSource ()=0

Protected Attributes
std::string	m_FilePath
std::string	m_FileName
std::string	m_AbsolutePath

Additional Inherited Members
Public Types inherited from openfluid::core::UnstructuredValue
enum	UnstructuredType { GeoVectorValue, GeoRasterValue }

Detailed Description

Abstract class for geospatial data.

Constructor & Destructor Documentation

openfluid::core::GeoValue::GeoValue	(	std::string	FilePath,
		std::string	FileName
	)

virtual openfluid::core::GeoValue::~GeoValue ( )

pure virtual

Member Function Documentation

static std::string openfluid::core::GeoValue::computeAbsolutePath ( std::string  FilePath, std::string  FileName  )

static

std::string openfluid::core::GeoValue::getFilePath

(

)

virtual void openfluid::core::GeoValue::tryToOpenSource ( )

protectedpure virtual

Implemented in openfluid::core::GeoRasterValue, and openfluid::core::GeoVectorValue.

Member Data Documentation

std::string openfluid::core::GeoValue::m_AbsolutePath

protected

std::string openfluid::core::GeoValue::m_FileName

protected

std::string openfluid::core::GeoValue::m_FilePath

protected

---

The documentation for this class was generated from the following file:

• core/GeoValue.hpp
