openfluid::ware::SimulationDrivenWare Class Reference

#include <ware/SimulationDrivenWare.hpp>

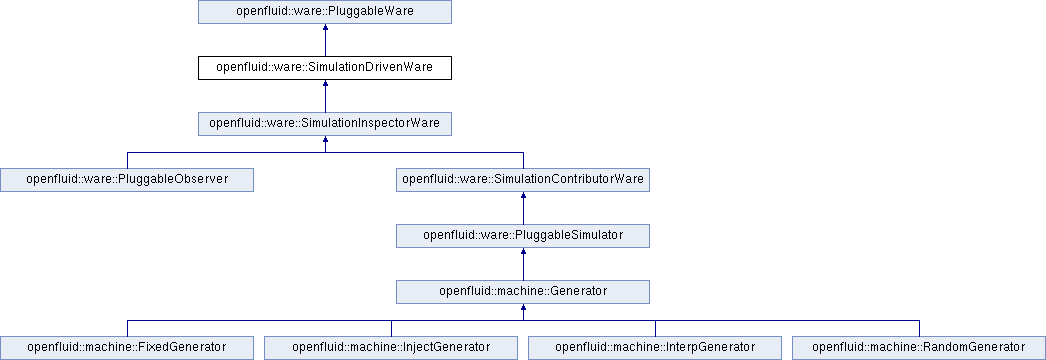

Inheritance diagram for openfluid::ware::SimulationDrivenWare:

Public Member Functions
virtual	~SimulationDrivenWare ()
void	linkToSimulation (const openfluid::base::SimulationStatus *SimStatus)
void	linkToSimulationLogger (openfluid::base::SimulationLogger *SimLogger)
void	initializeWare (const WareID_t &ID)
void	finalizeWare ()
void	setPreviousTimeIndex (const openfluid::core::TimeIndex_t &TimeIndex)
Public Member Functions inherited from openfluid::ware::PluggableWare
virtual	~PluggableWare ()
void	linkToRunEnvironment (const openfluid::base::EnvironmentProperties *Env)

Protected Member Functions
virtual bool	isLinked () const
openfluid::core::DateTime	OPENFLUID_GetBeginDate () const
openfluid::core::DateTime	OPENFLUID_GetEndDate () const
openfluid::core::DateTime	OPENFLUID_GetCurrentDate () const
openfluid::core::Duration_t	OPENFLUID_GetSimulationDuration () const
openfluid::core::Duration_t	OPENFLUID_GetDefaultDeltaT () const
openfluid::core::TimeIndex_t	OPENFLUID_GetCurrentTimeIndex () const
openfluid::core::TimeIndex_t	OPENFLUID_GetPreviousRunTimeIndex () const
openfluid::base::SimulationStatus::SimulationStage	OPENFLUID_GetCurrentStage () const
openfluid::base::SimulationStatus::SchedulingConstraint	OPENFLUID_GetSchedulingConstraint () const
virtual void	OPENFLUID_RaiseWarning (const std::string &Msg)
virtual void	OPENFLUID_RaiseWarning (const std::string &Source, const std::string &Msg)
virtual void	OPENFLUID_RaiseError (const std::string &Msg)
virtual void	OPENFLUID_RaiseError (const std::string &Source, const std::string &Msg)
	SimulationDrivenWare (WareType WType)
Protected Member Functions inherited from openfluid::ware::PluggableWare
bool	OPENFLUID_GetRunEnvironment (std::string Key, std::string &Val)
bool	OPENFLUID_GetRunEnvironment (std::string Key, bool &Val)
WareID_t	OPENFLUID_GetWareID () const
	PluggableWare (WareType WType)

Protected Attributes
openfluid::base::SimulationLogger *	mp_SimLogger
openfluid::base::StdoutAndFileOutputStream	OPENFLUID_Logger
Protected Attributes inherited from openfluid::ware::PluggableWare
bool	m_Initialized
WareType	m_WareType

Additional Inherited Members
Public Types inherited from openfluid::ware::PluggableWare
enum	WareType { UNDEFINED, OBSERVER, SIMULATOR, OTHER }
Static Public Member Functions inherited from openfluid::ware::PluggableWare
static bool	isWellFormated (const openfluid::ware::WareParamKey_t &ParameterKey)
static boost::property_tree::ptree	getParamsAsPropertyTree (const WareParams_t &Params)

Constructor & Destructor Documentation

openfluid::ware::SimulationDrivenWare::SimulationDrivenWare ( WareType  WType )

inlineprotected

virtual openfluid::ware::SimulationDrivenWare::~SimulationDrivenWare ( )

inlinevirtual

Member Function Documentation

void openfluid::ware::SimulationDrivenWare::finalizeWare ( )

virtual

Reimplemented from openfluid::ware::PluggableWare.

void openfluid::ware::SimulationDrivenWare::initializeWare ( const WareID_t &  ID )

virtual

Reimplemented from openfluid::ware::PluggableWare.

virtual bool openfluid::ware::SimulationDrivenWare::isLinked ( ) const

inlineprotectedvirtual

Reimplemented from openfluid::ware::PluggableWare.

Reimplemented in openfluid::ware::SimulationInspectorWare.

void openfluid::ware::SimulationDrivenWare::linkToSimulation

(

const openfluid::base::SimulationStatus *

SimStatus

)

void openfluid::ware::SimulationDrivenWare::linkToSimulationLogger ( openfluid::base::SimulationLogger *  SimLogger )

inline

openfluid::core::DateTime openfluid::ware::SimulationDrivenWare::OPENFLUID_GetBeginDate ( ) const

protected

Returns the real beginning date of the simulated period

Returns

the date

openfluid::core::DateTime openfluid::ware::SimulationDrivenWare::OPENFLUID_GetCurrentDate ( ) const

protected

Returns the current real date corresponding to the current time index

Returns

the date

openfluid::base::SimulationStatus::SimulationStage openfluid::ware::SimulationDrivenWare::OPENFLUID_GetCurrentStage ( ) const

protected

Returns the current stage of the simulation

Returns

the stage

openfluid::core::TimeIndex_t openfluid::ware::SimulationDrivenWare::OPENFLUID_GetCurrentTimeIndex ( ) const

protected

Returns the current time index of the simulation, in seconds since the simulation started. When the simulation starts, the time index is equal to zero.

Returns

the current time index in seconds

openfluid::core::Duration_t openfluid::ware::SimulationDrivenWare::OPENFLUID_GetDefaultDeltaT ( ) const

protected

Returns the default DeltaT used by the scheduler

Returns

the deltaT in seconds

openfluid::core::DateTime openfluid::ware::SimulationDrivenWare::OPENFLUID_GetEndDate ( ) const

protected

Returns the real ending date of the simulated period

Returns

the date

openfluid::core::TimeIndex_t openfluid::ware::SimulationDrivenWare::OPENFLUID_GetPreviousRunTimeIndex ( ) const

protected

Returns the time index of the simulation when the plugged ware was previously run

Returns

the time index in seconds

openfluid::base::SimulationStatus::SchedulingConstraint openfluid::ware::SimulationDrivenWare::OPENFLUID_GetSchedulingConstraint ( ) const

protected

Returns the scheduling constraint applied to the simulation (may be NONE)

Returns

the constraint type

openfluid::core::Duration_t openfluid::ware::SimulationDrivenWare::OPENFLUID_GetSimulationDuration ( ) const

protected

Returns the simulation duration in seconds

Returns

the duration in seconds

virtual void openfluid::ware::SimulationDrivenWare::OPENFLUID_RaiseError ( const std::string &  Msg )

protectedvirtual

Raises an error message to the kernel. This stops the simulation the next time the kernel has the control

Parameters

[in]

Msg

the content of the message

Reimplemented from openfluid::ware::PluggableWare.

virtual void openfluid::ware::SimulationDrivenWare::OPENFLUID_RaiseError ( const std::string &  Source, const std::string &  Msg  )

protectedvirtual

Raises an error message to the kernel. This stops the simulation the next time the kernel has the control

Parameters

[in]	Source	the source of the message
[in]	Msg	the content of the message

virtual void openfluid::ware::SimulationDrivenWare::OPENFLUID_RaiseWarning ( const std::string &  Msg )

protectedvirtual

Raises a time-marked warning message to the kernel. This do not stops the simulation

Parameters

[in]

Msg

the content of the message

virtual void openfluid::ware::SimulationDrivenWare::OPENFLUID_RaiseWarning ( const std::string &  Source, const std::string &  Msg  )

protectedvirtual

Raises a time-marked warning message to the kernel. This do not stops the simulation

Parameters

[in]	Source	the source of the message
[in]	Msg	the content of the message

void openfluid::ware::SimulationDrivenWare::setPreviousTimeIndex ( const openfluid::core::TimeIndex_t &  TimeIndex )

inline

Member Data Documentation

openfluid::base::SimulationLogger* openfluid::ware::SimulationDrivenWare::mp_SimLogger

protected

Pointer to the execution messages repository

openfluid::base::StdoutAndFileOutputStream openfluid::ware::SimulationDrivenWare::OPENFLUID_Logger

protected

---

The documentation for this class was generated from the following file:

• ware/SimulationDrivenWare.hpp
