openfluid::core::MatrixValue Class Reference

Detailed Description

MatrixValue is a container for a 2D matrix of signed double precision floating point values.

See also

Value

Matrix

Example : declaration

// declaration of a MatrixValue, empty by default
openfluid::core::MatrixValue Val1;

// declaration of a MatrixValue, of 3 columns by 7 rows, with values initialized to 0.0
openfluid::core::MatrixValue Val2(3,7);

// declaration of a MatrixValue, of 3 columns by 7 rows, with values initialized to 1.99
openfluid::core::MatrixValue Val3(3,7,1.99);

Example : getting the contained values

double Tmp1;

Tmp1 = Val1.get(2,3);

Example : getting all values as a c-style array of double, rows-first indexed

double* DblArrayVal;

DblArrayVal = Val1.data();

Example : setting the contained values

// using the set method
Val1.set(0,0,101.99);

Example : conversion from string

openfluid::core::StringValue StringVal;

// to MatrixValue, using two string values separators
StringVal.set("[[3,5,2.8,6,17.999923],[1,1,1,1,1],[2.11,2.12,2.13,2.14,2.15]]");
StringVal.toMatrixValue(Val2);

// to MatrixValue, using a single string values separator and row length
StringVal.set("[3,5,2.8,6,17.999923,1,1,1,1,1,2.11,2.12,2.13,2.14,2.15]");
StringVal.toMatrixValue(5,Val2);

Example : conversion to string

std::string StdStrVal = Val1.toString();

#include <core/MatrixValue.hpp>

Public Member Functions
	MatrixValue ()
	MatrixValue (const MatrixValue &Val)
	MatrixValue (MatrixValue &&Val)
	MatrixValue (unsigned long ColsNbr, unsigned long RowsNbr)
	MatrixValue (unsigned long ColsNbr, unsigned long RowsNbr, double InitValue)
MatrixValue &	operator= (const Value &Other) override
MatrixValue &	operator= (Value &&Other) override
MatrixValue &	operator= (const MatrixValue &Other)
MatrixValue &	operator= (MatrixValue &&Other)
virtual	~MatrixValue ()
Type	getType () const override
Value *	clone () const override
void	writeToStream (std::ostream &OutStm) const override
void	writeQuotedToStream (std::ostream &OutStm) const override
Public Member Functions inherited from openfluid::core::CompoundValue
bool	isSimple () const override
bool	isCompound () const override
Public Member Functions inherited from openfluid::core::Value
	Value ()=default
	Value (const Value &)=default
	Value (Value &&)=default
virtual	~Value ()=default
virtual bool	convert (Value &) const
bool	isDoubleValue () const
const DoubleValue &	asDoubleValue () const
DoubleValue &	asDoubleValue ()
bool	isIntegerValue () const
const IntegerValue &	asIntegerValue () const
IntegerValue &	asIntegerValue ()
bool	isBooleanValue () const
const BooleanValue &	asBooleanValue () const
BooleanValue &	asBooleanValue ()
bool	isStringValue () const
const StringValue &	asStringValue () const
StringValue &	asStringValue ()
bool	isNullValue () const
const NullValue &	asNullValue () const
NullValue &	asNullValue ()
bool	isVectorValue () const
const VectorValue &	asVectorValue () const
VectorValue &	asVectorValue ()
bool	isMatrixValue () const
const MatrixValue &	asMatrixValue () const
MatrixValue &	asMatrixValue ()
bool	isMapValue () const
const MapValue &	asMapValue () const
MapValue &	asMapValue ()
bool	isTreeValue () const
const TreeValue &	asTreeValue () const
TreeValue &	asTreeValue ()
std::string	toString () const
Public Member Functions inherited from openfluid::core::Matrix< double >
	Matrix ()
	Matrix (const Matrix &Other)
	Matrix (unsigned long ColsNbr, unsigned long RowsNbr)
	Matrix (unsigned long ColsNbr, unsigned long RowsNbr, const double &InitValue)
Matrix< double > &	operator= (const Matrix &Other)
Matrix< double > &	operator= (Matrix &&Other)
virtual	~Matrix ()=default
unsigned long	getColsNbr () const
unsigned long	getRowsNbr () const
unsigned long	getSize () const
unsigned long	size () const
double *	data () const
void	setData (double *Data, unsigned long ColsNbr, unsigned long RowsNbr)
double	getElement (unsigned long ColIndex, unsigned long RowIndex) const
double	at (unsigned long ColIndex, unsigned long RowIndex) const
double	get (unsigned long ColIndex, unsigned long RowIndex) const
void	setElement (unsigned long ColIndex, unsigned long RowIndex, const double &Val)
void	set (unsigned long ColIndex, unsigned long RowIndex, const double &Val)
void	fill (const double &Val)
void	clear ()

Additional Inherited Members
Public Types inherited from openfluid::core::Value
enum	Type {   NONE, BOOLEAN, INTEGER, DOUBLE,   STRING, VECTOR, MATRIX, MAP,   TREE, NULLL }
Static Public Member Functions inherited from openfluid::core::Value
static bool	getValueTypeFromString (const std::string &ValueTypeString, Value::Type &ValueType)
static std::string	getStringFromValueType (const Value::Type ValueType)
Protected Member Functions inherited from openfluid::core::Matrix< double >
bool	allocate (unsigned long ColsNbr, unsigned long RowsNbr)
void	init ()
Protected Attributes inherited from openfluid::core::Matrix< double >
std::unique_ptr< double[]>	m_Data
unsigned long	m_ColsNbr
unsigned long	m_RowsNbr

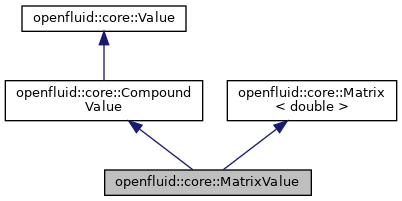

Inheritance diagram for openfluid::core::MatrixValue:

Collaboration diagram for openfluid::core::MatrixValue:

Constructor & Destructor Documentation

MatrixValue() [1/5]

openfluid::core::MatrixValue::MatrixValue ( )

inline

Default constructor

MatrixValue() [2/5]

openfluid::core::MatrixValue::MatrixValue ( const MatrixValue &  Val )

inline

Copy constructor

MatrixValue() [3/5]

openfluid::core::MatrixValue::MatrixValue ( MatrixValue &&  Val )

inline

Move constructor

MatrixValue() [4/5]

openfluid::core::MatrixValue::MatrixValue ( unsigned long  ColsNbr, unsigned long  RowsNbr  )

inline

Constructor, creates a Matrix containing ColsNbr x RowsNbr elements

MatrixValue() [5/5]

openfluid::core::MatrixValue::MatrixValue ( unsigned long  ColsNbr, unsigned long  RowsNbr, double  InitValue  )

inline

Constructor, creates a Matrix containing ColsNbr x RowsNbr elements, initialized with value InitValue

~MatrixValue()

virtual openfluid::core::MatrixValue::~MatrixValue ( )

inlinevirtual

Member Function Documentation

clone()

Value* openfluid::core::MatrixValue::clone ( ) const

inlineoverridevirtual

Reimplemented from openfluid::core::Value.

getType()

Type openfluid::core::MatrixValue::getType ( ) const

inlineoverridevirtual

Implements openfluid::core::Value.

operator=() [1/4]

MatrixValue& openfluid::core::MatrixValue::operator=

(

const MatrixValue &

Other

)

operator=() [2/4]

MatrixValue& openfluid::core::MatrixValue::operator= ( const Value &  )

overridevirtual

Assignment operator

Reimplemented from openfluid::core::Value.

operator=() [3/4]

MatrixValue& openfluid::core::MatrixValue::operator=

(

MatrixValue &&

Other

)

operator=() [4/4]

MatrixValue& openfluid::core::MatrixValue::operator= ( Value &&  )

overridevirtual

Move operator

Reimplemented from openfluid::core::Value.

writeQuotedToStream()

void openfluid::core::MatrixValue::writeQuotedToStream ( std::ostream &  OutStm ) const

inlineoverridevirtual

Implements openfluid::core::Value.

writeToStream()

void openfluid::core::MatrixValue::writeToStream ( std::ostream &  OutStm ) const

overridevirtual

Implements openfluid::core::Value.

---

The documentation for this class was generated from the following file:

• core/MatrixValue.hpp
