Interface for a landscape representation element. More...

#include <landr/LandREntity.hpp>

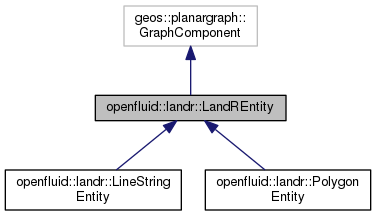

Inheritance diagram for openfluid::landr::LandREntity:

Collaboration diagram for openfluid::landr::LandREntity:

Public Member Functions
	LandREntity (const geos::geom::Geometry *Geom, unsigned int OfldId)

virtual	~LandREntity ()

virtual LandREntity *	clone ()=0

const geos::geom::Geometry *	geometry ()
	Returns the geos::geom::Geometry of this LandREntity. More...

unsigned int	getOfldId () const
	Returns the identifier of this LandREntity. More...

geos::geom::Point *	centroid () const
	Returns the centroid of this LandREntity. More...

double	getArea () const
	Returns the area of this LandREntity. More...

double	getLength () const
	Returns the length of this LandREntity. More...

std::set< LandREntity * > *	neighbours ()
	Returns a set of LandREntity neighbours of this LandREntity. More...

bool	getAttributeValue (const std::string &AttributeName, core::Value &Value) const
	Gets the value of an attribute. More...

bool	setAttributeValue (const std::string &AttributeName, const core::Value *Value)
	Sets the value of an attribute. More...

double	getDistCentroCentro (LandREntity &Other)
	Gets the distance between this LandREntity centroid and Other LandREntity centroid. More...

LandREntity *	neighbour_MinDistCentroCentro ()
	Gets the LandREntity neighbour that has the minimum centroid-to-centroid distance. More...

Protected Member Functions
virtual void	computeNeighbours ()=0
	Computes the neighbours of this LandREntity. More...

Protected Attributes
const geos::geom::Geometry *	mp_Geom
	The geos::geom::Geometry of this LandREntity. More...

unsigned int	m_OfldId
	The identifier of this LandREntity. More...

geos::geom::Point *	mp_Centroid
	The centroid of this LandREntity. More...

double	m_Area
	The area of this LandREntity. More...

double	m_Length
	The length of this LandREntity. More...

std::set< LandREntity * > *	mp_Neighbours
	A set of LandREntity neighbours of this LandREntity. More...

std::map< std::string, core::Value * >	m_Attributes
	A map of attributes of this LandREntity. More...

Friends
class	LandRGraph

Detailed Description

Interface for a landscape representation element.

Constructor & Destructor Documentation

openfluid::landr::LandREntity::LandREntity	(	const geos::geom::Geometry *	Geom,
		unsigned int	OfldId
	)

virtual openfluid::landr::LandREntity::~LandREntity ( )

virtual

Member Function Documentation

geos::geom::Point* openfluid::landr::LandREntity::centroid ( ) const

Returns the centroid of this LandREntity.

virtual LandREntity* openfluid::landr::LandREntity::clone ( )

pure virtual

Implemented in openfluid::landr::PolygonEntity, and openfluid::landr::LineStringEntity.

virtual void openfluid::landr::LandREntity::computeNeighbours ( )

protectedpure virtual

Computes the neighbours of this LandREntity.

Implemented in openfluid::landr::PolygonEntity, and openfluid::landr::LineStringEntity.

const geos::geom::Geometry* openfluid::landr::LandREntity::geometry ( )

Returns the geos::geom::Geometry of this LandREntity.

double openfluid::landr::LandREntity::getArea ( ) const

Returns the area of this LandREntity.

bool openfluid::landr::LandREntity::getAttributeValue	(	const std::string &	AttributeName,
		core::Value &	Value
	)		const

Gets the value of an attribute.

Parameters

AttributeName	The name of the attribute to get.
Value	The core::Value to assign the attribute value.

Returns: True if the attribute exists, false otherwise.

double openfluid::landr::LandREntity::getDistCentroCentro ( LandREntity & Other )

Gets the distance between this LandREntity centroid and Other LandREntity centroid.

double openfluid::landr::LandREntity::getLength ( ) const

Returns the length of this LandREntity.

unsigned int openfluid::landr::LandREntity::getOfldId ( ) const

Returns the identifier of this LandREntity.

LandREntity* openfluid::landr::LandREntity::neighbour_MinDistCentroCentro ( )

Gets the LandREntity neighbour that has the minimum centroid-to-centroid distance.

std::set<LandREntity*>* openfluid::landr::LandREntity::neighbours ( )

Returns a set of LandREntity neighbours of this LandREntity.

bool openfluid::landr::LandREntity::setAttributeValue	(	const std::string &	AttributeName,
		const core::Value *	Value
	)

Sets the value of an attribute.

Takes the ownership of Value.

Parameters

AttributeName	The name of the attribute to set.
Value	The core::Value assign to the attribute value.

Returns: True if the attribute exists, false otherwise.

Friends And Related Function Documentation

friend class LandRGraph

friend

Member Data Documentation

double openfluid::landr::LandREntity::m_Area

protected

The area of this LandREntity.

std::map<std::string, core::Value*> openfluid::landr::LandREntity::m_Attributes

protected

A map of attributes of this LandREntity.

double openfluid::landr::LandREntity::m_Length

protected

The length of this LandREntity.

unsigned int openfluid::landr::LandREntity::m_OfldId

protected

The identifier of this LandREntity.

geos::geom::Point* openfluid::landr::LandREntity::mp_Centroid

protected

The centroid of this LandREntity.

const geos::geom::Geometry* openfluid::landr::LandREntity::mp_Geom

protected

The geos::geom::Geometry of this LandREntity.

std::set<LandREntity*>* openfluid::landr::LandREntity::mp_Neighbours

protected

A set of LandREntity neighbours of this LandREntity.

The documentation for this class was generated from the following file:

landr/LandREntity.hpp
