Public Member Functions | List of all members
openfluid::core::MatrixValue Class Reference

#include <core/MatrixValue.hpp>

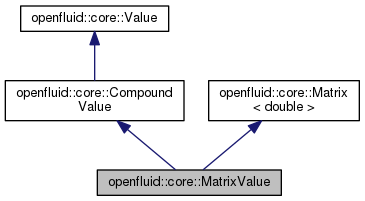

Inheritance diagram for openfluid::core::MatrixValue:
Inheritance graph
[legend]
Collaboration diagram for openfluid::core::MatrixValue:
Collaboration graph
[legend]

Public Member Functions

 MatrixValue ()

 MatrixValue (const MatrixValue &Val)

 MatrixValue (unsigned long ColsNbr, unsigned long RowsNbr)

 MatrixValue (unsigned long ColsNbr, unsigned long RowsNbr, double InitValue)

virtual ~MatrixValue ()

Valueoperator= (const Value &Other)

Type getType () const

Valueclone () const

void writeToStream (std::ostream &OutStm) const

void writeQuotedToStream (std::ostream &OutStm) const

- Public Member Functions inherited from openfluid::core::CompoundValue
 CompoundValue ()

bool isSimple () const

bool isCompound () const

- Public Member Functions inherited from openfluid::core::Value
 Value ()

virtual ~Value ()

virtual bool convert (Value &) const

bool isDoubleValue () const

const DoubleValueasDoubleValue () const

DoubleValueasDoubleValue ()

bool isIntegerValue () const

const IntegerValueasIntegerValue () const

IntegerValueasIntegerValue ()

bool isBooleanValue () const

const BooleanValueasBooleanValue () const

BooleanValueasBooleanValue ()

bool isStringValue () const

const StringValueasStringValue () const

StringValueasStringValue ()

bool isNullValue () const

const NullValueasNullValue () const

NullValueasNullValue ()

bool isVectorValue () const

const VectorValueasVectorValue () const

VectorValueasVectorValue ()

bool isMatrixValue () const

const MatrixValueasMatrixValue () const

MatrixValueasMatrixValue ()

bool isMapValue () const

const MapValueasMapValue () const

MapValueasMapValue ()

bool isTreeValue () const

const TreeValueasTreeValue () const

TreeValueasTreeValue ()

std::string toString () const

- Public Member Functions inherited from openfluid::core::Matrix< double >
 Matrix ()

 Matrix (const Matrix &Matrix)

 Matrix (unsigned long ColsNbr, unsigned long RowsNbr)

 Matrix (unsigned long ColsNbr, unsigned long RowsNbr, doubleInitValue)

virtual ~Matrix ()

unsigned long getColsNbr () const

unsigned long getRowsNbr () const

unsigned long getSize () const

unsigned long size () const

double * data () const

void setData (double *Data, unsigned long ColsNbr, unsigned long RowsNbr)

double getElement (unsigned long ColIndex, unsigned long RowIndex) const

double at (unsigned long ColIndex, unsigned long RowIndex) const

double get (unsigned long ColIndex, unsigned long RowIndex) const

void setElement (unsigned long ColIndex, unsigned long RowIndex, doubleElement)

void set (unsigned long ColIndex, unsigned long RowIndex, doubleElement)

Matrix< double > & operator= (const Matrix &A)

void fill (const double &Val)

void clear ()


Additional Inherited Members

- Public Types inherited from openfluid::core::Value
enum  Type {
  NONE, BOOLEAN, INTEGER, DOUBLE,
  STRING, VECTOR, MATRIX, MAP,
  TREE, NULLL
}

- Static Public Member Functions inherited from openfluid::core::Value
static bool getValueTypeFromString (const std::string &ValueTypeString, Value::Type &ValueType)

static std::string getStringFromValueType (const Value::Type ValueType)

- Protected Member Functions inherited from openfluid::core::Matrix< double >
bool allocate (unsigned long ColsNbr, unsigned long RowsNbr)

void init ()

- Protected Attributes inherited from openfluid::core::Matrix< double >
double * m_Data

unsigned long m_ColsNbr

unsigned long m_RowsNbr


Detailed Description

MatrixValue is a container for a 2D matrix of signed double precision floating point values.

See also
Value
Matrix


Example : declaration

// declaration of a MatrixValue, empty by default
// declaration of a MatrixValue, of 3 columns by 7 rows, with values initialized to 0.0
// declaration of a MatrixValue, of 3 columns by 7 rows, with values initialized to 1.99

Example : getting the contained values

double Tmp1;
Tmp1 = Val1.get(2,3);

Example : getting all values as a c-style array of double, rows-first indexed

double DblArrayVal[];
DblArrayVal = Val1.getData();

Example : setting the contained values

// using the set method
Val1.set(0,0,101.99);

Example : conversion from string

// to MatrixValue, using two string values separators
StringVal.set("[[3,5,2.8,6,17.999923],[1,1,1,1,1],[2.11,2.12,2.13,2.14,2.15]]");
StringVal.toMatrixValue(Val2);
// to MatrixValue, using a single string values separator and row length
StringVal.set("[3,5,2.8,6,17.999923,1,1,1,1,1,2.11,2.12,2.13,2.14,2.15]");
StringVal.toMatrixValue(5,Val2);

Example : conversion to string

std::string StdStrVal = Val1.toString();

Constructor & Destructor Documentation

openfluid::core::MatrixValue::MatrixValue ( )
inline

Default constructor

openfluid::core::MatrixValue::MatrixValue ( const MatrixValue Val)
inline

Copy constructor

openfluid::core::MatrixValue::MatrixValue ( unsigned long  ColsNbr,
unsigned long  RowsNbr
)
inline

Constructor, creates a Matrix containing ColsNbr x RowsNbr elements

openfluid::core::MatrixValue::MatrixValue ( unsigned long  ColsNbr,
unsigned long  RowsNbr,
double  InitValue
)
inline

Constructor, creates a Matrix containing ColsNbr x RowsNbr elements, initialized with value InitValue

virtual openfluid::core::MatrixValue::~MatrixValue ( )
inlinevirtual

Member Function Documentation

Value* openfluid::core::MatrixValue::clone ( ) const
inlinevirtual

Reimplemented from openfluid::core::Value.

Type openfluid::core::MatrixValue::getType ( ) const
inlinevirtual
Value& openfluid::core::MatrixValue::operator= ( const Value )
virtual

Assignment operator

Reimplemented from openfluid::core::Value.

void openfluid::core::MatrixValue::writeQuotedToStream ( std::ostream &  OutStm) const
inlinevirtual
void openfluid::core::MatrixValue::writeToStream ( std::ostream &  OutStm) const
virtual

The documentation for this class was generated from the following file:
