Detailed Description

VectorValue is a container for a 1D vector of signed double precision floating point values.

See also: Value; Vector

Example : declaration

// declaration of a VectorValue, empty by default
openfluid::core::VectorValue Val1;
// declaration of a VectorValue of 7 elements, with values initialized to 0.0
openfluid::core::VectorValue Val2(7);
// declaration of a VectorValue of 7 elements, with values initialized to 1.99
openfluid::core::VectorValue Val3(7,1.99);

Example : getting the contained values

double Tmp1;
// using the get method
Tmp1 = Val1.get(2);
// or using the [] operator
Tmp1 = Val1[2];

Example : getting all values as a c-style array of double

double* DblArrayVal;
DblArrayVal = Val1.data();

Example : setting the contained values

// using the set method
Val1.set(0,101.99);
// or using the [] operator
Val1[0] = 101.99;

Example : conversion from string

openfluid::core::StringValue StringVal;
// to VectorValue, using a string values separator
StringVal.set("[3,5,2.8,6,17.999923,1,1,1,1,1,2.11,2.12,2.13,2.14,2.15]");
StringVal.toVectorValue(Val2);

Example : conversion to string

std::string StdStrVal = Val1.toString();

#include <core/VectorValue.hpp>

Public Member Functions
	VectorValue ()

	VectorValue (const VectorValue &Val)

	VectorValue (unsigned long Size)

	VectorValue (unsigned long Size, double InitValue)

	VectorValue (double *Data, unsigned long Size)

virtual	~VectorValue ()

Value &	operator= (const Value &Other)

Type	getType () const

Value *	clone () const

void	writeToStream (std::ostream &OutStm) const

void	writeQuotedToStream (std::ostream &OutStm) const

Public Member Functions inherited from openfluid::core::CompoundValue
	CompoundValue ()

virtual	~CompoundValue ()

bool	isSimple () const

bool	isCompound () const

Public Member Functions inherited from openfluid::core::Value
	Value ()=default

virtual	~Value ()

virtual bool	convert (Value &) const

bool	isDoubleValue () const

const DoubleValue &	asDoubleValue () const

DoubleValue &	asDoubleValue ()

bool	isIntegerValue () const

const IntegerValue &	asIntegerValue () const

IntegerValue &	asIntegerValue ()

bool	isBooleanValue () const

const BooleanValue &	asBooleanValue () const

BooleanValue &	asBooleanValue ()

bool	isStringValue () const

const StringValue &	asStringValue () const

StringValue &	asStringValue ()

bool	isNullValue () const

const NullValue &	asNullValue () const

NullValue &	asNullValue ()

bool	isVectorValue () const

const VectorValue &	asVectorValue () const

VectorValue &	asVectorValue ()

bool	isMatrixValue () const

const MatrixValue &	asMatrixValue () const

MatrixValue &	asMatrixValue ()

bool	isMapValue () const

const MapValue &	asMapValue () const

MapValue &	asMapValue ()

bool	isTreeValue () const

const TreeValue &	asTreeValue () const

TreeValue &	asTreeValue ()

std::string	toString () const

Public Member Functions inherited from openfluid::core::Vector< double >
	Vector ()

	Vector (const Vector &Vector)

	Vector (unsigned long Size)

	Vector (unsigned long Size, double InitValue)

	Vector (double *Data, unsigned long Size)

virtual	~Vector ()

unsigned long	getSize () const

unsigned long	size () const

double *	data () const

void	setData (double *Data, unsigned long Size)

double	getElement (unsigned long Index) const

double	at (unsigned long Index) const

double	get (unsigned long Index) const

void	setElement (unsigned long Index, double Element)

void	set (unsigned long Index, double Element)

double &	operator[] (unsigned long Index)

Vector< double > &	operator= (const Vector &A)

void	fill (const double &Val)

void	clear ()

iterator	begin ()

const_iterator	begin () const

iterator	end ()

const_iterator	end () const

Additional Inherited Members
Public Types inherited from openfluid::core::Value
enum	Type { NONE, BOOLEAN, INTEGER, DOUBLE, STRING, VECTOR, MATRIX, MAP, TREE, NULLL }

Public Types inherited from openfluid::core::Vector< double >
typedef double *	iterator

typedef const double *	const_iterator

Static Public Member Functions inherited from openfluid::core::Value
static bool	getValueTypeFromString (const std::string &ValueTypeString, Value::Type &ValueType)

static std::string	getStringFromValueType (const Value::Type ValueType)

Protected Member Functions inherited from openfluid::core::Vector< double >
bool	allocate (unsigned long Size)

void	init ()

Static Protected Member Functions inherited from openfluid::core::Vector< double >
static void	copy (const Vector &Source, Vector &Dest)

Protected Attributes inherited from openfluid::core::Vector< double >
double *	m_Data

unsigned long	m_Size

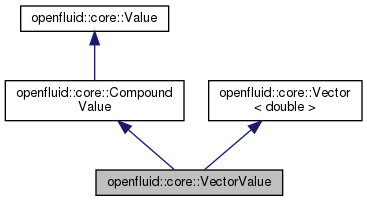

Inheritance diagram for openfluid::core::VectorValue:

[legend]

Collaboration diagram for openfluid::core::VectorValue:

[legend]

Constructor & Destructor Documentation

◆ VectorValue() [1/5]

openfluid::core::VectorValue::VectorValue ( )

inline

Default constructor

◆ VectorValue() [2/5]

openfluid::core::VectorValue::VectorValue ( const VectorValue & Val )

inline

Copy constructor

◆ VectorValue() [3/5]

openfluid::core::VectorValue::VectorValue ( unsigned long Size )

inline

Constructor, creates a vector containing Size elements

◆ VectorValue() [4/5]

openfluid::core::VectorValue::VectorValue	(	unsigned long	Size,
		double	InitValue
	)

inline

Constructor, creates a vector containing Size elements, initialized with value InitValue

◆ VectorValue() [5/5]

openfluid::core::VectorValue::VectorValue	(	double *	Data,
		unsigned long	Size
	)

inline

Constructor, creates a vector of size Size, containing Data

◆ ~VectorValue()

virtual openfluid::core::VectorValue::~VectorValue ( )

inlinevirtual

Member Function Documentation

◆ clone()

Value* openfluid::core::VectorValue::clone ( ) const

inlinevirtual

Reimplemented from openfluid::core::Value.

◆ getType()

Type openfluid::core::VectorValue::getType ( ) const

inlinevirtual

Implements openfluid::core::Value.

◆ operator=()

Value& openfluid::core::VectorValue::operator= ( const Value & )

virtual

Assignment operator

Reimplemented from openfluid::core::Value.

◆ writeQuotedToStream()

void openfluid::core::VectorValue::writeQuotedToStream ( std::ostream & OutStm ) const

inlinevirtual

Implements openfluid::core::Value.

◆ writeToStream()

void openfluid::core::VectorValue::writeToStream ( std::ostream & OutStm ) const

virtual

Implements openfluid::core::Value.

The documentation for this class was generated from the following file:

core/VectorValue.hpp
