A LandRGraph composed of LineStringEntities. More...

#include <landr/LineStringGraph.hpp>

Inheritance diagram for openfluid::landr::LineStringGraph:

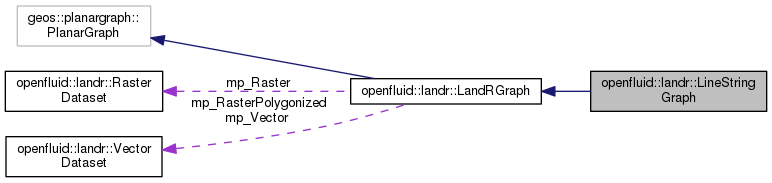

Collaboration diagram for openfluid::landr::LineStringGraph:

Public Member Functions
virtual	~LineStringGraph ()

LandRGraph::GraphType	getType ()
	Returns the type of graph. More...

LineStringEntity *	entity (int OfldId)
	Returns a LineStringEntity with OFLD_ID, or 0 if it doesn't exist. More...

virtual void	removeEntity (int OfldId)
	Removes from this LineStringGraph the LineStringEntity with OFLD_ID and its associated nodes. More...

LineStringEntity *	lastLineStringEntity ()
	Returns the last LineStringEntity of this LineStringGraph, according to the LineStringEntity orientations, ie the one that has no down neighbour. More...

std::vector< LineStringEntity * >	getEndLineStringEntities ()
	Returns a vector of LineStringEntity that have no down neighbour, according to the LineStringEntity orientations. More...

std::vector< LineStringEntity * >	getStartLineStringEntities ()
	Returns a vector of LineStringEntity that have no up neighbour, according to the LineStringEntity orientations. More...

double	getRasterValueForEntityStartNode (LineStringEntity &Entity)
	Fetch the associated raster value corresponding to the LineStringEntity StartNode coordinate. More...

double	getRasterValueForEntityEndNode (LineStringEntity &Entity)
	Fetch the associated raster value corresponding to the LineStringEntity EndNode coordinate. More...

void	setAttributeFromRasterValueAtStartNode (const std::string &AttributeName)
	Creates a new attribute for these LineStringGraph entities, and set for each LineStringEntity this attribute value as the associated raster values corresponding to the StartNode LineStringEntity coordinates. More...

void	setAttributeFromRasterValueAtEndNode (const std::string &AttributeName)
	Creates a new attribute for these LineStringGraph entities, and set for each LineStringEntity this attribute value as the associated raster values corresponding to the EndNode LineStringEntity coordinates. More...

void	reverseLineStringEntity (LineStringEntity &Entity)
	Reverse a LineStringEntity orientation. More...

bool	isLineStringGraphArborescence ()
	Returns true if this LineStringGraph is an arborescence, false otherwise. More...

virtual void	setAttributeFromMeanRasterValues (const std::string &AttributeName)
	Creates a new attribute for this LineStringGraph entities, and set for each LineStringEntity this attribute value as the mean of the StartNode altitude and the EndNode altitude. More...

void	mergeLineStringEntities (LineStringEntity &Entity, LineStringEntity &EntityToMerge)
	Merges a LineStringEntity into an other one. More...

std::multimap< double, LineStringEntity * >	getLineStringEntitiesByMinLength (double MinLength, bool rmDangle=true, bool HighDegree=true)
	Gets a map of small LineStringEntity under length threshold. More...

void	setOrientationByOfldId (int OfldId)
	Set the orientation of the LineStringGraph with outlet identification by OFLD_ID identifier. Only for LineStringGraph of arborescence type. More...

void	mergeLineStringEntitiesByMinLength (double MinLength, bool rmDangle=true)
	Merges the entities of this LineStringGraph under length threshold. More...

Public Member Functions inherited from openfluid::landr::LandRGraph
virtual	~LandRGraph ()

Entities_t	getEntities ()
	Returns a list of the LandREntity of this LandRGraph. More...

Entities_t	getOfldIdOrderedEntities ()
	Returns a list of the LandREntity of this LandRGraph and sorted by identifier. More...

std::map< int, LandREntity * >	getEntitiesByOfldId ()
	Returns a map of the LandREntity of this LandRGraph and their identifiers. More...

unsigned int	getSize () const
	Gets the number of LandREntity in the LandRGraph. More...

void	removeUnusedNodes ()
	Removes from this LandRGraph the nodes of degree 0. More...

void	addAttribute (const std::string &AttributeName)
	Adds an attribute to this LandRGraph. More...

void	removeAttribute (const std::string &AttributeName)
	Removes an attribute to this LandRGraph. More...

std::vector< std::string >	getAttributeNames ()
	Returns a vector of the names of the attributes of this LandRGraph. More...

void	addAGeoRasterValue (openfluid::core::GeoRasterValue &Raster)
	Associates a core::GeoRasterValue to this LandRGraph. More...

void	addAGeoRasterValue (const openfluid::landr::RasterDataset &Raster)
	Associates a RasterDataset to this LandRGraph. More...

bool	hasAnAssociatedRaster ()
	Returns true if this LandRGraph has an associated raster, false otherwise. More...

openfluid::landr::VectorDataset *	rasterPolygonized ()
	Transforms the associated raster value into an openfluid::landr::VectorDataset of polygons. More...

std::vector< geos::geom::Polygon * > *	rasterPolygonizedPolys ()
	Transforms the associated raster value into a vector of geos::geom::Polygon. More...

virtual double	getRasterValueForEntityCentroid (const LandREntity &Entity)
	Fetchs the associated raster value corresponding to the LandREntity centroid coordinate. More...

void	setAttributeFromRasterValueAtCentroid (const std::string &AttributeName)
	Creates a new attribute for all the LandREntity of this LandRGraph, and set for each LandREntity this attribute value as the raster value corresponding to the LandREntity centroid coordinate. More...

void	computeNeighbours ()
	Computes the LandREntity neighbours of each LandREntity of this LandRGraph, according to its type. More...

void	exportToShp (const std::string &FilePath, const std::string &FileName)
	Creates on disk a shapefile representing this LandRGraph. More...

void	setAttributeFromVectorId (const std::string &AttributeName, openfluid::core::GeoVectorValue &Vector, const std::string &IdColumn, const std::string &ValueColumn)
	Creates a new attribute for all the LandREntity of this LandRGraph, and set for each LandREntity this attribute value as the vector value corresponding to the entity ID number. More...

void	setAttributeFromVectorId (const std::string &AttributeName, openfluid::landr::VectorDataset &Vector, const std::string &IdColumn, const std::string &ValueColumn)
	Creates a new attribute for all the LandREntity of this LandRGraph, and set for each LandREntity this attribute value as the vector value corresponding to the entity OFLD_ID. More...

virtual void	setAttributeFromVectorLocation (const std::string &AttributeName, openfluid::core::GeoVectorValue &Vector, const std::string &Column, double Thresh=0.0001)
	Creates a new attribute for all the LandREntity of this LandRGraph, and set for each LandREntity this attribute value as the vector value corresponding to the Vector Entity Geometry. More...

virtual void	setAttributeFromVectorLocation (const std::string &AttributeName, openfluid::landr::VectorDataset &Vector, const std::string &Column, double Thresh=0.0001)
	Creates a new attribute for all the LandREntity of this LandRGraph, and set for each LandREntity this attribute value as the vector value corresponding to the Vector Entity Geometry. More...

void	snapVertices (double snapTolerance)
	Snap the vertices of this LandRGraph under a threshold. More...

Static Public Member Functions
static LineStringGraph *	create (openfluid::core::GeoVectorValue &Val)
	Creates a new LineStringGraph initialized from a core::GeoVectorValue. More...

static LineStringGraph *	create (openfluid::landr::VectorDataset &Vect)
	Creates a new LineStringGraph initialized from a VectorDataset. More...

static LineStringGraph *	create (const LandRGraph::Entities_t &Entities)
	Creates a new LineStringGraph initialized with a list of LandREntity. More...

Protected Member Functions
	LineStringGraph ()

	LineStringGraph (openfluid::core::GeoVectorValue &Val)
	Creates a new LineStringGraph initialized from a core::GeoVectorValue. More...

	LineStringGraph (openfluid::landr::VectorDataset &Vect)
	Creates a new LineStringGraph initialized from a VectorDataset. More...

virtual void	addEntity (LandREntity *Entity)
	Adds a LandREntity into this LineStringGraph. More...

virtual LandREntity *	createNewEntity (const geos::geom::Geometry *Geom, unsigned int OfldId)
	Creates a new LineStringEntity. More...

Protected Member Functions inherited from openfluid::landr::LandRGraph
	LandRGraph ()

	LandRGraph (openfluid::core::GeoVectorValue &Val)
	Creates a new LandRGraph from a core::GeoVectorValue. More...

	LandRGraph (const openfluid::landr::VectorDataset &Vect)
	Creates a new LandRGraph from a VectorDataset. More...

void	addEntitiesFromGeoVector ()
	Adds LandREntity from the associated VectorDataset of this LandRGraph. More...

void	addEntitiesFromEntityList (const LandRGraph::Entities_t &Entities)
	Adds LandREntity from a LandREntity list to this LandRGraph. More...

geos::planargraph::Node *	node (const geos::geom::Coordinate &Coordinate)
	Returns a geos::planagraph::Node of this LandRGraph from a geos::geom::Coordinate. More...

Additional Inherited Members
Public Types inherited from openfluid::landr::LandRGraph
enum	GraphType { POLYGON, LINESTRING }

typedef std::list< LandREntity * >	Entities_t

Protected Attributes inherited from openfluid::landr::LandRGraph
openfluid::landr::VectorDataset *	mp_Vector
	The VectorDataset associated to this LandRGraph. More...

const geos::geom::GeometryFactory *	mp_Factory
	The geos::geom::GeometryFactory used to build this LandRGraph. More...

std::map< int, LandREntity * >	m_EntitiesByOfldId
	A map of the LandREntity of this LandRGraph and sorted by identifier. More...

Entities_t	m_Entities
	A list of the LandREntity of this LandRGraph. More...

openfluid::landr::RasterDataset *	mp_Raster
	The RasterDataset associated to this LandRGraph. More...

openfluid::landr::VectorDataset *	mp_RasterPolygonized
	The VectorDataset representation of the RasterDataset associated to this LandRGraph. More...

std::vector< geos::geom::Polygon * > *	mp_RasterPolygonizedPolys
	A vector of geos::geom::Polygon representation of the RasterDataset associated to this LandRGraph. More...

Static Protected Attributes inherited from openfluid::landr::LandRGraph
static int	m_FileNum

Detailed Description

A LandRGraph composed of LineStringEntities.

Constructor & Destructor Documentation

openfluid::landr::LineStringGraph::LineStringGraph ( )

protected

openfluid::landr::LineStringGraph::LineStringGraph ( openfluid::core::GeoVectorValue & Val )

protected

Creates a new LineStringGraph initialized from a core::GeoVectorValue.

openfluid::landr::LineStringGraph::LineStringGraph ( openfluid::landr::VectorDataset & Vect )

protected

Creates a new LineStringGraph initialized from a VectorDataset.

virtual openfluid::landr::LineStringGraph::~LineStringGraph ( )

virtual

Member Function Documentation

virtual void openfluid::landr::LineStringGraph::addEntity ( LandREntity * Entity )

protectedvirtual

Adds a LandREntity into this LineStringGraph.

Implements openfluid::landr::LandRGraph.

static LineStringGraph* openfluid::landr::LineStringGraph::create ( openfluid::core::GeoVectorValue & Val )

static

Creates a new LineStringGraph initialized from a core::GeoVectorValue.

Parameters

Val	A core::GeoVectorValue which must be composed of one or many LineStrings, and each of them must contain a "OFLD_ID" attribute.

static LineStringGraph* openfluid::landr::LineStringGraph::create ( openfluid::landr::VectorDataset & Vect )

static

Creates a new LineStringGraph initialized from a VectorDataset.

Parameters

Vect	A VectorDataset which must be composed of one or many LineStrings, and each of them must contain a "OFLD_ID" attribute.

static LineStringGraph* openfluid::landr::LineStringGraph::create ( const LandRGraph::Entities_t & Entities )

static

Creates a new LineStringGraph initialized with a list of LandREntity.

Parameters

Entities A list of LandREntity which must be LineStringEntity.

virtual LandREntity* openfluid::landr::LineStringGraph::createNewEntity	(	const geos::geom::Geometry *	Geom,
		unsigned int	OfldId
	)

protectedvirtual

Creates a new LineStringEntity.

Parameters

Geom	The geos::geom::Geometry of the new LineStringEntity to create.
OfldId	The identifier of the new LineStringEntity.

Returns: A new LandREntity.

Implements openfluid::landr::LandRGraph.

LineStringEntity* openfluid::landr::LineStringGraph::entity ( int OfldId )

virtual

Returns a LineStringEntity with OFLD_ID, or 0 if it doesn't exist.

Reimplemented from openfluid::landr::LandRGraph.

std::vector<LineStringEntity*> openfluid::landr::LineStringGraph::getEndLineStringEntities ( )

Returns a vector of LineStringEntity that have no down neighbour, according to the LineStringEntity orientations.

std::multimap<double,LineStringEntity*> openfluid::landr::LineStringGraph::getLineStringEntitiesByMinLength	(	double	MinLength,
		bool	rmDangle = `true`,
		bool	HighDegree = `true`
	)

Gets a map of small LineStringEntity under length threshold.

Parameters

MinLength	The length threshold (in map units).
rmDangle	: if true, get also dangles under the threshold.
HighDegree	: if true, do not get the if StartNode and EndNode of this LineStringEntitiy are Degree>=3.

Returns: a multimap of LineStringEntity with key is the length of each LineStringEntity.

double openfluid::landr::LineStringGraph::getRasterValueForEntityEndNode ( LineStringEntity & Entity )

Fetch the associated raster value corresponding to the LineStringEntity EndNode coordinate.

Parameters

Entity The LineStringEntity to get the EndNode coordinate from.

Returns: The raster value corresponding to the LineStringEntity EndNode coordinate.

double openfluid::landr::LineStringGraph::getRasterValueForEntityStartNode ( LineStringEntity & Entity )

Fetch the associated raster value corresponding to the LineStringEntity StartNode coordinate.

Parameters

Entity The LineStringEntity to get the StartNode coordinate from.

Returns: The raster value corresponding to the LineStringEntity StartNode coordinate.

std::vector<LineStringEntity*> openfluid::landr::LineStringGraph::getStartLineStringEntities ( )

Returns a vector of LineStringEntity that have no up neighbour, according to the LineStringEntity orientations.

LandRGraph::GraphType openfluid::landr::LineStringGraph::getType ( )

virtual

Returns the type of graph.

Implements openfluid::landr::LandRGraph.

bool openfluid::landr::LineStringGraph::isLineStringGraphArborescence ( )

Returns true if this LineStringGraph is an arborescence, false otherwise.

An arborescence is a graph with no loop; edges can be well directed or not.

LineStringEntity* openfluid::landr::LineStringGraph::lastLineStringEntity ( )

Returns the last LineStringEntity of this LineStringGraph, according to the LineStringEntity orientations, ie the one that has no down neighbour.

Returns: The last LineStringEntity or 0 if there is zero or more than one LineStringEntity whith no down neighbour.

void openfluid::landr::LineStringGraph::mergeLineStringEntities	(	LineStringEntity &	Entity,
		LineStringEntity &	EntityToMerge
	)

Merges a LineStringEntity into an other one.

The LineStringEntity to merge is deleted.

Parameters

Entity	An existent LineStringEntity.
EntityToMerge	The LineStringEntity which will be merged into Entity and will be deleted.

void openfluid::landr::LineStringGraph::mergeLineStringEntitiesByMinLength	(	double	MinLength,
		bool	rmDangle = `true`
	)

Merges the entities of this LineStringGraph under length threshold.

Parameters

MinLength	The length threshold (in map units).
rmDangle	if true, remove also dangles under the threshold, default is true.

virtual void openfluid::landr::LineStringGraph::removeEntity ( int OfldId )

virtual

Removes from this LineStringGraph the LineStringEntity with OFLD_ID and its associated nodes.

Parameters

OfldId The identifier.

Implements openfluid::landr::LandRGraph.

void openfluid::landr::LineStringGraph::reverseLineStringEntity ( LineStringEntity & Entity )

Reverse a LineStringEntity orientation.

Parameters

Entity The LineStringEntity to reverse.

virtual void openfluid::landr::LineStringGraph::setAttributeFromMeanRasterValues ( const std::string & AttributeName )

virtual

Creates a new attribute for this LineStringGraph entities, and set for each LineStringEntity this attribute value as the mean of the StartNode altitude and the EndNode altitude.

Parameters

AttributeName The name of the attribute to create.

Implements openfluid::landr::LandRGraph.

void openfluid::landr::LineStringGraph::setAttributeFromRasterValueAtEndNode ( const std::string & AttributeName )

Creates a new attribute for these LineStringGraph entities, and set for each LineStringEntity this attribute value as the associated raster values corresponding to the EndNode LineStringEntity coordinates.

Parameters

AttributeName The name of the attribute to create for the EndNode

void openfluid::landr::LineStringGraph::setAttributeFromRasterValueAtStartNode ( const std::string & AttributeName )

Creates a new attribute for these LineStringGraph entities, and set for each LineStringEntity this attribute value as the associated raster values corresponding to the StartNode LineStringEntity coordinates.

Parameters

AttributeName The name of the attribute to create for the StartNode

void openfluid::landr::LineStringGraph::setOrientationByOfldId ( int OfldId )

Set the orientation of the LineStringGraph with outlet identification by OFLD_ID identifier. Only for LineStringGraph of arborescence type.

Parameters

OfldId The identifier of the outlet.

The documentation for this class was generated from the following file:

landr/LineStringGraph.hpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
