A LandRGraph composed of PolygonEntities. More...

#include <landr/PolygonGraph.hpp>

Inheritance diagram for openfluid::landr::PolygonGraph:

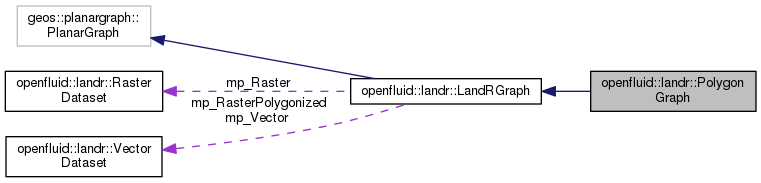

Collaboration diagram for openfluid::landr::PolygonGraph:

Public Types
typedef std::map< geos::geom::Polygon *, double >	RastValByRastPoly_t
	A a map of polygonized Raster geos::geom::Polygon and its area intersecting PolygonEntity. More...

Public Types inherited from openfluid::landr::LandRGraph
enum	GraphType { POLYGON, LINESTRING }

typedef std::list< LandREntity * >	Entities_t

Public Member Functions
virtual	~PolygonGraph ()

LandRGraph::GraphType	getType ()
	Returns the type of graph. More...

PolygonEntity *	entity (int OfldId)
	Returns a PolygonEntity with OfldId, or 0 if it doesn't exist. More...

bool	isComplete ()
	Returns true if each PolygonEntity is complete. More...

bool	hasIsland ()
	Returns true if this PolygonGraph has one or more islands. More...

RastValByRastPoly_t	computeRasterPolyOverlapping (PolygonEntity &Entity)
	Gets a map of polygonized Raster polygons and its area intersecting Entity. More...

virtual void	setAttributeFromMeanRasterValues (const std::string &AttributeName)
	Creates a new attribute for this PolygonGraph entities, and set for each PolygonEntity this attribute value as the mean of the overlapping raster values, relative to overlapping areas. More...

void	createVectorRepresentation (std::string FilePath, std::string FileName)
	Creates on disk a shapefile representing the PolygonEdges of this PolygonGraph. More...

void	computeLineStringNeighbours (LineStringGraph &Graph, openfluid::landr::LandRTools::Relationship Relation, double BufferDistance, double ContactLength=0)
	Computes the neighbours between the PolygonEntity elements of this PolygonGraph and the LineStringEntity of a LineStringGraph. More...

void	computeNeighboursWithBarriers (LineStringGraph &Graph, openfluid::landr::LandRTools::Relationship Relation, double BufferDistance, double ContactLength=0)
	Computes the neighbours between the PolygonEntity elements of this PolygonGraph by using the LineStringEntity of an input LineStringGraph which are considered as barriers. More...

void	createEdgeAttribute (std::string AttributeName, openfluid::core::Value &Value)
	Creates attribute for the PolygonEdge of this PolygonGraph. More...

void	removeEdgeAttribute (std::string AttributeName)
	Removes the attribute of the PolygonEdge of this PolygonGraph. More...

std::vector< std::string >	getEdgeAttributeNames ()
	Returns a vector of the name of the PolygonEdge attributes. More...

virtual void	removeEntity (int OfldId)
	Removes from this PolygonGraph the PolygonEntity with OfldId and its associated nodes. More...

void	cleanEdges (PolygonEntity &Entity)
	Clean the PolygonEdge of a PolygonEntity. More...

std::multimap< double, PolygonEntity * >	getPolygonEntitiesByMinArea (double MinArea, bool Neighbour=true)
	Gets a map of small PolygonEntity which area are under a threshold. More...

std::multimap< double, PolygonEntity * >	getPolygonEntitiesByCompactness (double Compactness, bool Neighbour=true)
	Gets a map of sliver PolygonEntity which compactness value are superior to a compactness threshold (Gravelius Index) More...

void	mergePolygonEntities (PolygonEntity &Entity, PolygonEntity &EntityToMerge)
	Merge a PolygonEntity into an other one. More...

void	mergePolygonEntitiesByMinArea (double MinArea)
	Merge the entities of this PolygonGraph which area is under threshold. More...

void	mergePolygonEntitiesByCompactness (double Compactness)
	Merge the entities of this PolygonGraph which compactness value are superior to a compactness threshold (Gravelius Index). More...

Public Member Functions inherited from openfluid::landr::LandRGraph
virtual	~LandRGraph ()

Entities_t	getEntities ()
	Returns a list of the LandREntity of this LandRGraph. More...

Entities_t	getOfldIdOrderedEntities ()
	Returns a list of the LandREntity of this LandRGraph and sorted by identifier. More...

std::map< int, LandREntity * >	getEntitiesByOfldId ()
	Returns a map of the LandREntity of this LandRGraph and their identifiers. More...

unsigned int	getSize () const
	Gets the number of LandREntity in the LandRGraph. More...

void	removeUnusedNodes ()
	Removes from this LandRGraph the nodes of degree 0. More...

void	addAttribute (const std::string &AttributeName)
	Adds an attribute to this LandRGraph. More...

void	removeAttribute (const std::string &AttributeName)
	Removes an attribute to this LandRGraph. More...

std::vector< std::string >	getAttributeNames ()
	Returns a vector of the names of the attributes of this LandRGraph. More...

void	addAGeoRasterValue (openfluid::core::GeoRasterValue &Raster)
	Associates a core::GeoRasterValue to this LandRGraph. More...

void	addAGeoRasterValue (const openfluid::landr::RasterDataset &Raster)
	Associates a RasterDataset to this LandRGraph. More...

bool	hasAnAssociatedRaster ()
	Returns true if this LandRGraph has an associated raster, false otherwise. More...

openfluid::landr::VectorDataset *	rasterPolygonized ()
	Transforms the associated raster value into an openfluid::landr::VectorDataset of polygons. More...

std::vector< geos::geom::Polygon * > *	rasterPolygonizedPolys ()
	Transforms the associated raster value into a vector of geos::geom::Polygon. More...

virtual double	getRasterValueForEntityCentroid (const LandREntity &Entity)
	Fetchs the associated raster value corresponding to the LandREntity centroid coordinate. More...

void	setAttributeFromRasterValueAtCentroid (const std::string &AttributeName)
	Creates a new attribute for all the LandREntity of this LandRGraph, and set for each LandREntity this attribute value as the raster value corresponding to the LandREntity centroid coordinate. More...

void	computeNeighbours ()
	Computes the LandREntity neighbours of each LandREntity of this LandRGraph, according to its type. More...

void	exportToShp (const std::string &FilePath, const std::string &FileName)
	Creates on disk a shapefile representing this LandRGraph. More...

void	setAttributeFromVectorId (const std::string &AttributeName, openfluid::core::GeoVectorValue &Vector, const std::string &IdColumn, const std::string &ValueColumn)
	Creates a new attribute for all the LandREntity of this LandRGraph, and set for each LandREntity this attribute value as the vector value corresponding to the entity ID number. More...

void	setAttributeFromVectorId (const std::string &AttributeName, openfluid::landr::VectorDataset &Vector, const std::string &IdColumn, const std::string &ValueColumn)
	Creates a new attribute for all the LandREntity of this LandRGraph, and set for each LandREntity this attribute value as the vector value corresponding to the entity OFLD_ID. More...

virtual void	setAttributeFromVectorLocation (const std::string &AttributeName, openfluid::core::GeoVectorValue &Vector, const std::string &Column, double Thresh=0.0001)
	Creates a new attribute for all the LandREntity of this LandRGraph, and set for each LandREntity this attribute value as the vector value corresponding to the Vector Entity Geometry. More...

virtual void	setAttributeFromVectorLocation (const std::string &AttributeName, openfluid::landr::VectorDataset &Vector, const std::string &Column, double Thresh=0.0001)
	Creates a new attribute for all the LandREntity of this LandRGraph, and set for each LandREntity this attribute value as the vector value corresponding to the Vector Entity Geometry. More...

void	snapVertices (double snapTolerance)
	Snap the vertices of this LandRGraph under a threshold. More...

Static Public Member Functions
static PolygonGraph *	create (openfluid::core::GeoVectorValue &Val)
	Creates a new PolygonGraph initialized from a core::GeoVectorValue. More...

static PolygonGraph *	create (openfluid::landr::VectorDataset &Vect)
	Create a new PolygonGraph initialized from a VectorDataset. More...

static PolygonGraph *	create (const LandRGraph::Entities_t &Entities)
	Create a new PolygonGraph initialized with a list of LandREntity. More...

Protected Member Functions
	PolygonGraph ()

	PolygonGraph (openfluid::core::GeoVectorValue &Val)
	Creates a new PolygonGraph initialized from a core::GeoVectorValue. More...

	PolygonGraph (openfluid::landr::VectorDataset &Vect)
	Creates a new PolygonGraph initialized from a VectorDataset. More...

virtual void	addEntity (LandREntity *Entity)
	Adds a LandREntity into this PolygonGraph. More...

virtual LandREntity *	createNewEntity (const geos::geom::Geometry *Geom, unsigned int OfldId)
	Creates a new PolygonEntity. More...

PolygonEdge *	createEdge (geos::geom::LineString &LineString)
	Creates a new PolygonEdge, with its two DirectedEdges and add them to this graph. More...

void	removeSegment (PolygonEntity Entity, geos::geom::LineString Segment)
	Removes a segment of the exterior boundary of the input PolygonEntity. More...

void	addEdgeAttribute (std::string AttributeName, LandREntity &Entity)
	Adds an attribute to the PolygonEdge of a PolygonEntity. More...

void	removeEdgeAttribute (std::string AttributeName, LandREntity &Entity)
	Removes an attribute to the PolygonEdge of a PolygonEntity. More...

Protected Member Functions inherited from openfluid::landr::LandRGraph
	LandRGraph ()

	LandRGraph (openfluid::core::GeoVectorValue &Val)
	Creates a new LandRGraph from a core::GeoVectorValue. More...

	LandRGraph (const openfluid::landr::VectorDataset &Vect)
	Creates a new LandRGraph from a VectorDataset. More...

void	addEntitiesFromGeoVector ()
	Adds LandREntity from the associated VectorDataset of this LandRGraph. More...

void	addEntitiesFromEntityList (const LandRGraph::Entities_t &Entities)
	Adds LandREntity from a LandREntity list to this LandRGraph. More...

geos::planargraph::Node *	node (const geos::geom::Coordinate &Coordinate)
	Returns a geos::planagraph::Node of this LandRGraph from a geos::geom::Coordinate. More...

Additional Inherited Members
Protected Attributes inherited from openfluid::landr::LandRGraph
openfluid::landr::VectorDataset *	mp_Vector
	The VectorDataset associated to this LandRGraph. More...

const geos::geom::GeometryFactory *	mp_Factory
	The geos::geom::GeometryFactory used to build this LandRGraph. More...

std::map< int, LandREntity * >	m_EntitiesByOfldId
	A map of the LandREntity of this LandRGraph and sorted by identifier. More...

Entities_t	m_Entities
	A list of the LandREntity of this LandRGraph. More...

openfluid::landr::RasterDataset *	mp_Raster
	The RasterDataset associated to this LandRGraph. More...

openfluid::landr::VectorDataset *	mp_RasterPolygonized
	The VectorDataset representation of the RasterDataset associated to this LandRGraph. More...

std::vector< geos::geom::Polygon * > *	mp_RasterPolygonizedPolys
	A vector of geos::geom::Polygon representation of the RasterDataset associated to this LandRGraph. More...

Static Protected Attributes inherited from openfluid::landr::LandRGraph
static int	m_FileNum

Detailed Description

A LandRGraph composed of PolygonEntities.

Member Typedef Documentation

typedef std::map<geos::geom::Polygon*, double> openfluid::landr::PolygonGraph::RastValByRastPoly_t

A a map of polygonized Raster geos::geom::Polygon and its area intersecting PolygonEntity.

Constructor & Destructor Documentation

openfluid::landr::PolygonGraph::PolygonGraph ( )

protected

openfluid::landr::PolygonGraph::PolygonGraph ( openfluid::core::GeoVectorValue & Val )

protected

Creates a new PolygonGraph initialized from a core::GeoVectorValue.

openfluid::landr::PolygonGraph::PolygonGraph ( openfluid::landr::VectorDataset & Vect )

protected

Creates a new PolygonGraph initialized from a VectorDataset.

virtual openfluid::landr::PolygonGraph::~PolygonGraph ( )

virtual

Member Function Documentation

void openfluid::landr::PolygonGraph::addEdgeAttribute	(	std::string	AttributeName,
		LandREntity &	Entity
	)

protected

Adds an attribute to the PolygonEdge of a PolygonEntity.

Parameters

AttributeName	The name of the attribute to add.
Entity	The LandREntity to add the PolygonEdge attribute.

virtual void openfluid::landr::PolygonGraph::addEntity ( LandREntity * Entity )

protectedvirtual

Adds a LandREntity into this PolygonGraph.

Implements openfluid::landr::LandRGraph.

void openfluid::landr::PolygonGraph::cleanEdges ( PolygonEntity & Entity )

Clean the PolygonEdge of a PolygonEntity.

Parameters

Entity The PolygonEntity to clean.

void openfluid::landr::PolygonGraph::computeLineStringNeighbours	(	LineStringGraph &	Graph,
		openfluid::landr::LandRTools::Relationship	Relation,
		double	BufferDistance,
		double	ContactLength = `0`
	)

Computes the neighbours between the PolygonEntity elements of this PolygonGraph and the LineStringEntity of a LineStringGraph.

Parameters

Graph	The LineStringGraph to compare to.
Relation	The Relationship to use for comparison.
BufferDistance	The distance below which we consider that two elements are related.
ContactLength	Min Length of the LineString in intersection with polygon Buffered Boundaries to be taking acccount (only for LandRTools::TOUCHES RelationShip)

void openfluid::landr::PolygonGraph::computeNeighboursWithBarriers	(	LineStringGraph &	Graph,
		openfluid::landr::LandRTools::Relationship	Relation,
		double	BufferDistance,
		double	ContactLength = `0`
	)

Computes the neighbours between the PolygonEntity elements of this PolygonGraph by using the LineStringEntity of an input LineStringGraph which are considered as barriers.

A barrier between two PolygonEntity will avoid to considered them as neighbours.

A LineStringEntity is considered as a barrier if it lies within the buffer of this PolygonEntity polygon boundary.

Parameters

Graph	The LineStringGraph to compare to.
Relation	The Relationship to use for comparison, the LandRTools::Relationship INTERSECTS is not allowed.
BufferDistance	The distance below which we consider that two elements are related.
ContactLength	Min Length of the LineString in intersection with polygon Buffered Boundaries to be taking acccount (only for LandRTools::TOUCHES RelationShip)

RastValByRastPoly_t openfluid::landr::PolygonGraph::computeRasterPolyOverlapping ( PolygonEntity & Entity )

Gets a map of polygonized Raster polygons and its area intersecting Entity.

Parameters

Entity The PolygonEntity to compare with the associated Raster.

Returns: A map of polygonized Raster Polygons, from associated polygonized raster, with for each one the intersection area.

static PolygonGraph* openfluid::landr::PolygonGraph::create ( openfluid::core::GeoVectorValue & Val )

static

Creates a new PolygonGraph initialized from a core::GeoVectorValue.

Val must be composed of one or many Polygons, and each of them must contain a "OFLD_ID" attribute.

static PolygonGraph* openfluid::landr::PolygonGraph::create ( openfluid::landr::VectorDataset & Vect )

static

Create a new PolygonGraph initialized from a VectorDataset.

Vect must be composed of one or many Polygons, and each of them must contain a "OFLD_ID" attribute.

static PolygonGraph* openfluid::landr::PolygonGraph::create ( const LandRGraph::Entities_t & Entities )

static

Create a new PolygonGraph initialized with a list of LandREntity.

Entities must be PolygonEntity.

PolygonEdge* openfluid::landr::PolygonGraph::createEdge ( geos::geom::LineString & LineString )

protected

Creates a new PolygonEdge, with its two DirectedEdges and add them to this graph.

Parameters

LineString The geos::geom::LineString representing the PolygonEdge to create.

Returns: The newly created PolygonEdge, or 0 if fails.

void openfluid::landr::PolygonGraph::createEdgeAttribute	(	std::string	AttributeName,
		openfluid::core::Value &	Value
	)

Creates attribute for the PolygonEdge of this PolygonGraph.

Doesn't reset if the AttributeName already exists.

Parameters

AttributeName	The name of the PolygonEdge attribute.
Value	The core::Value to associate to this attribute.

virtual LandREntity* openfluid::landr::PolygonGraph::createNewEntity	(	const geos::geom::Geometry *	Geom,
		unsigned int	OfldId
	)

protectedvirtual

Creates a new PolygonEntity.

Parameters

Geom	The geos::geom::Geometry of the new PolygonEntity to create.
OfldId	The identifier of the new PolygonEntity.

Returns: A new LandREntity.

Implements openfluid::landr::LandRGraph.

void openfluid::landr::PolygonGraph::createVectorRepresentation	(	std::string	FilePath,
		std::string	FileName
	)

Creates on disk a shapefile representing the PolygonEdges of this PolygonGraph.

Parameters

FilePath	The path where to create the out file.
FileName	A name for the out file to create, with a .shp extension.

PolygonEntity* openfluid::landr::PolygonGraph::entity ( int OfldId )

virtual

Returns a PolygonEntity with OfldId, or 0 if it doesn't exist.

Reimplemented from openfluid::landr::LandRGraph.

std::vector<std::string> openfluid::landr::PolygonGraph::getEdgeAttributeNames ( )

Returns a vector of the name of the PolygonEdge attributes.

Returns: A vector of the name of the PolygonEdge attributes.

std::multimap<double, PolygonEntity*> openfluid::landr::PolygonGraph::getPolygonEntitiesByCompactness	(	double	Compactness,
		bool	Neighbour = `true`
	)

Gets a map of sliver PolygonEntity which compactness value are superior to a compactness threshold (Gravelius Index)

Parameters

Compactness	The compactness threshold (perimeter/2 x sqrt (Pi x area))
Neighbour	: if true, get only PolygonEntity with at least one PolygonEntity neighbour; default is false.

Returns: a multimap of PolygonEntity with key is the compactness of each PolygonEntity.

std::multimap<double, PolygonEntity*> openfluid::landr::PolygonGraph::getPolygonEntitiesByMinArea	(	double	MinArea,
		bool	Neighbour = `true`
	)

Gets a map of small PolygonEntity which area are under a threshold.

Parameters

MinArea	The area threshold (in map units).
Neighbour	: if true, get only PolygonEntity with at least one PolygonEntity neighbour; default is true.

Returns: a multimap of PolygonEntity with key is the area of each PolygonEntity.

LandRGraph::GraphType openfluid::landr::PolygonGraph::getType ( )

virtual

Returns the type of graph.

Implements openfluid::landr::LandRGraph.

bool openfluid::landr::PolygonGraph::hasIsland ( )

Returns true if this PolygonGraph has one or more islands.

Returns: True if one or more islands are present, false otherwise.

bool openfluid::landr::PolygonGraph::isComplete ( )

Returns true if each PolygonEntity is complete.

Returns: True if all PolygonEntity of this PolygonGraph are complete, false otherwise.

void openfluid::landr::PolygonGraph::mergePolygonEntities	(	PolygonEntity &	Entity,
		PolygonEntity &	EntityToMerge
	)

Merge a PolygonEntity into an other one.

The PolygonEntity to merge is deleted.

Parameters

Entity	An existent PolygonEntity.
EntityToMerge	The PolygonEntity which will be merged into Entity and will be deleted.

void openfluid::landr::PolygonGraph::mergePolygonEntitiesByCompactness ( double Compactness )

Merge the entities of this PolygonGraph which compactness value are superior to a compactness threshold (Gravelius Index).

The small PolygonEntity is merged into the one which share the longest boundary.

Parameters

Compactness The compactness threshold (perimeter/2 x sqrt (Pi x area)).

void openfluid::landr::PolygonGraph::mergePolygonEntitiesByMinArea ( double MinArea )

Merge the entities of this PolygonGraph which area is under threshold.

The small PolygonEntity is merged into the one which share the longest boundary.

Parameters

MinArea The minimum area threshold.

void openfluid::landr::PolygonGraph::removeEdgeAttribute	(	std::string	AttributeName,
		LandREntity &	Entity
	)

protected

Removes an attribute to the PolygonEdge of a PolygonEntity.

Parameters

AttributeName	The name of the attribute to remove.
Entity	The LandREntity to remove the PolygonEdge attribute.

void openfluid::landr::PolygonGraph::removeEdgeAttribute ( std::string AttributeName )

Removes the attribute of the PolygonEdge of this PolygonGraph.

Parameters

AttributeName The name of the PolygonEdge attribute to delete.

Does nothing if AttributeName doesn't exist.

virtual void openfluid::landr::PolygonGraph::removeEntity ( int OfldId )

virtual

Removes from this PolygonGraph the PolygonEntity with OfldId and its associated nodes.

Parameters

OfldId

Implements openfluid::landr::LandRGraph.

void openfluid::landr::PolygonGraph::removeSegment	(	PolygonEntity *	Entity,
		geos::geom::LineString *	Segment
	)

protected

Removes a segment of the exterior boundary of the input PolygonEntity.

Parameters

Entity	The PolygonEntity to removes the segment to.
Segment	The geos::geom::LineString to remove.

virtual void openfluid::landr::PolygonGraph::setAttributeFromMeanRasterValues ( const std::string & AttributeName )

virtual

Creates a new attribute for this PolygonGraph entities, and set for each PolygonEntity this attribute value as the mean of the overlapping raster values, relative to overlapping areas.

Parameters

AttributeName The name of the attribute to create

Implements openfluid::landr::LandRGraph.

The documentation for this class was generated from the following file:

landr/PolygonGraph.hpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation
